Bridgeport precision ball screw set ,x,y axis with yoke

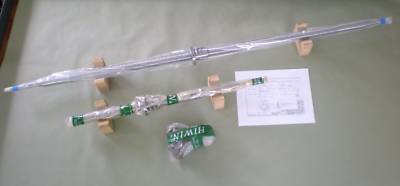

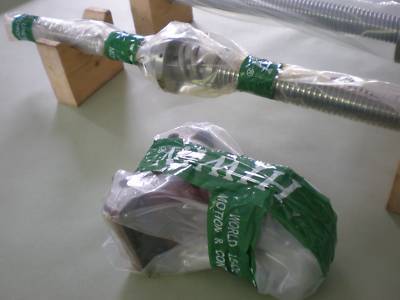

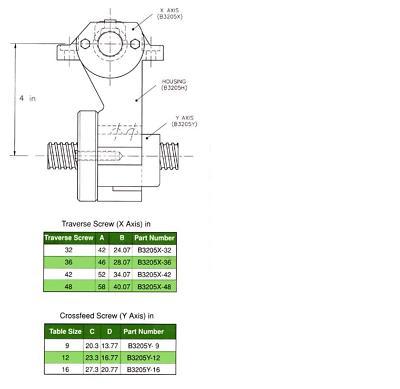

BRIDGEPORT PRECISION BALL SCREW SET, X,Y AXIS WITH YOKE

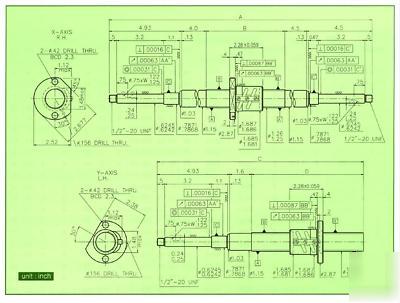

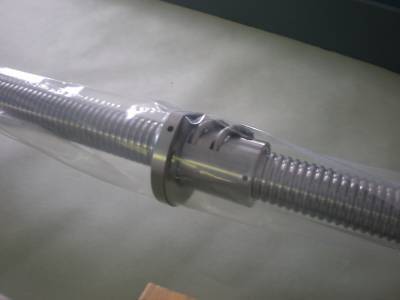

(1) Hiwin precision ground ball screw X axis
P/N: R32-5.08-04 / ST-A100B6A2
(1) Hiwin precision ground Y axis screw
P/N: L32-5.08-03 / ST-A10JSJA1
This set is for the 16" X 48" table size
Total weight: 32 Lbs. / Ref. # 203 P
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
