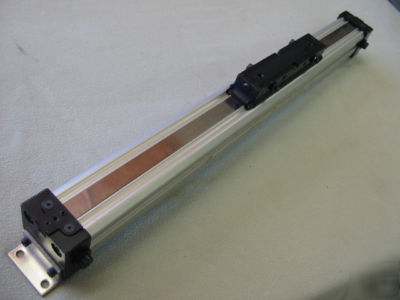

Rodless air cylinder. 32MM bore x 14" stroke
32MM [1 1/4"] BORE X 14" STROKE
THE BODY IS 2 1/4" WIDE X 2 3/32" TALL
CYLINDER IS 24" OVER ALL LENGTH
FROM THE BOTTOM TO THE TOP OF THE MOUNTING PAD IT IS 2.937"
THERE ARE FOOT MOUNTS ON BOTH ENDS, THESE MOUNTS MAKE THE OVERALL HEIGHT 3/8" MORE THAN THE ABOVE MEASUREMENT

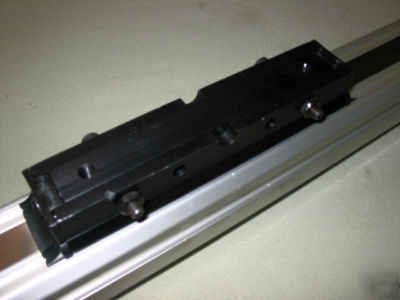

MOVING REMOVABLE MOUNTING PLATE IS 3/4" X 5 3/4" WITH 2 1/4-20 TAPED HOLES
