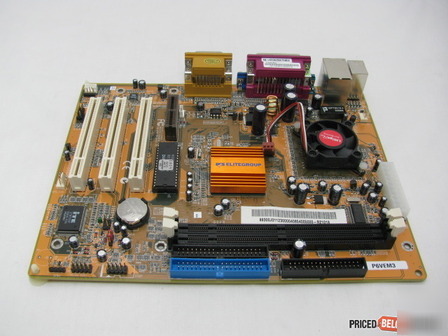

Ecs P6VEM3
EliteGroup P6VEM3 mainboard supports VIA Samuel2 1Giga Pro processor with front-side bus speeds of 133MHz. This mainboard has the SiS630E chipset, and integrates 3D Graphics Accelerator and Ultra DMA 33/66/100 function. The mainboard has a built-in AC97 Codec, provides an AMR (Audio Modem Riser) slot to support Audio and Modem application, and has a built-in 10BaseT/100BaseTX Network Interface. In addition, the mainboard has an extended set of ATX I/O Ports including PS/2 keyboard and mouse ports, two USB ports, a parallel port, a VGA port, a serial port, a game port and audio ports. An extra USB header gives you the option of connecting two more USB ports. This mainboard has all the features you need to develop a powerful multimedia workstation. The board is microATX size and has a power connector for an ATX power supply.
Product Type: Computer System Motherboard
