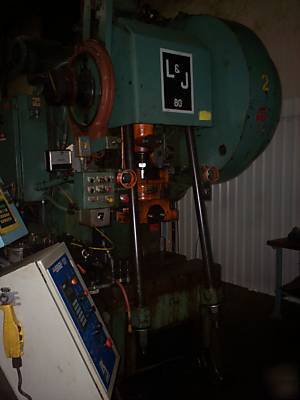

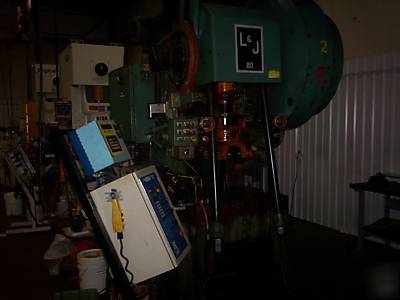

80 ton l&j punch press w/servo feed
CAPACITY-APPROX. (NEAR BOTTOM OF STROKE) 80 TONS
CRANKSHAFT-MAIN AND CRANKPIN DIA. 4-3/4-6-1/2
SHUT HEIGHT, BED TO SIDE SDAU
PUNCH SHANK HOLE DIA. X DEPTH 2-1/2 x 3
AREA OF FACE STANDARD SLIDE L TO R x F TO B 16 x 15
OVERHANG CENTER OF SLIDE TO FRAME, THROAT 13-1/2
BED AREA OF BOLSTER L TO R x F TO B 36 x36
THICKNESS OF BOLSTER 3-1/2
BED OPENING THROUGH BACK 16
BED OPENING L TO R x F TO B 19-1/2 x 10
STROKES PER MINUTE Variable speed (60-180 SPM)
WEIGHT (APPROX.) 13,600 LBS
