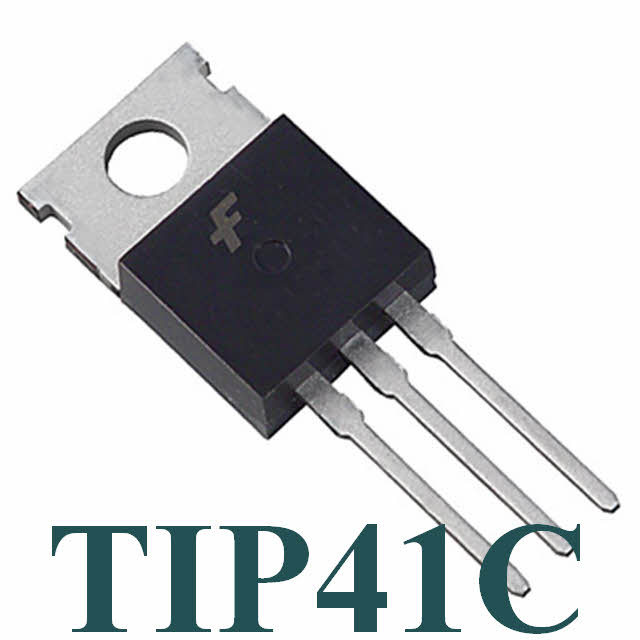

5 pcs TIP41C TIP41 npn transistor 100V 6A to-220
The TIP41C is a base island technology NPN power transistor in TO-220 plastic package that make this device suitable for audio, power linear and switching applications. The complementary PNP type is TIP42C
* Collector Emitter Saturation Voltage
VCE(sat) = 1.5 Vdc (Max) @ IC = 6.0 Adc
* Collector Emitter Sustaining Voltage
VCEO(sus) = 60 Vdc (Min) TIP41A, TIP42A
VCEO(sus) = 80 Vdc (Min) TIP41B, TIP42B
VCEO(sus) = 100 Vdc (Min) TIP41C, TIP42C
* High Current Gain Bandwidth Product
fT = 3.0 MHz (Min) @ IC = 500 mAdc
