Texas instruments series 305 04B plc rack with cards

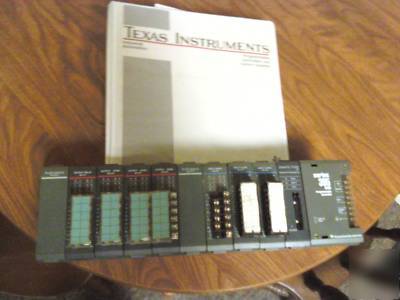

Up for sale is a Texas Instrument series 305 04B Programmable controller PLC.It's a complete unit, with 10 expansion slots, with 8 of them filled already. Slot 1 has a Simatic TI330 37 CPUSlot 2-3 have 24 volt input cards model 305-05NSlot 4 has a 24 volt input card, model 305- 01NSlot 5 has a filler module model 305-DMYSlot 6-8 have 115VAC output cards, model 305-20TSlot 9 has a relay output card, model 305-01TSlot 10 has another Filler module model 305-DMY
The unit comes with the original User's Manual for a Series 405 PLC, but I believe its primarily the same unit, as this is what them machine I removed the plc had with it.
I don't have any way to test the unit, but I did put 110 ac to it, and the power light comes on, and different lights on the output cards come on, some flashing, and I can hear relays clicking waiting for a run signal.
