Square d magnum 15 kv mg dse-65-750-1200 amp a 15MGSB-4

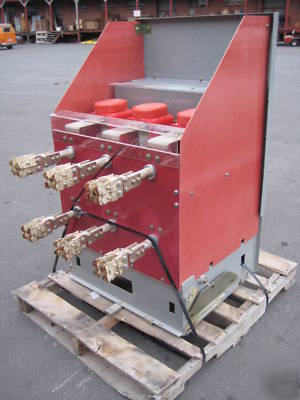

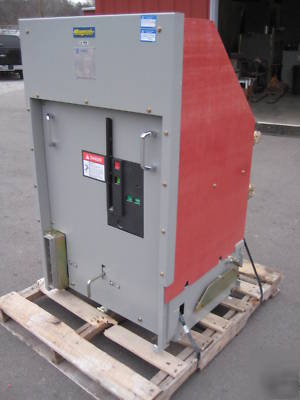

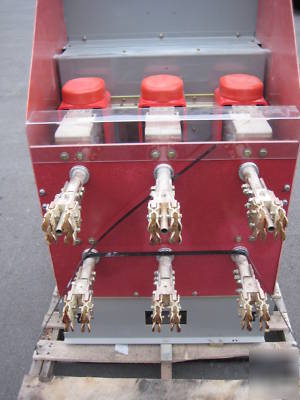

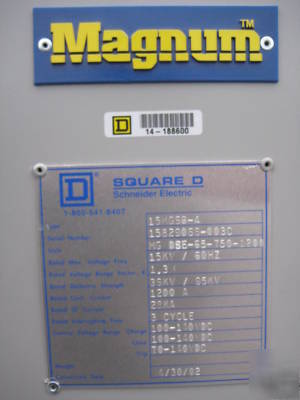

Medium Voltage Circuit Breaker

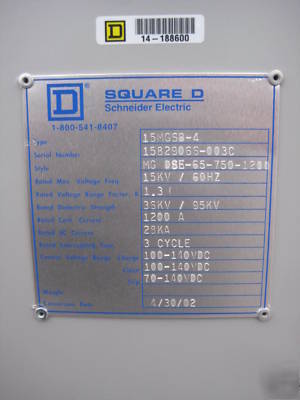

Rated Max. Voltage Freq.: 15KV / 60HZ
Rated Voltage Range Factor K: 1.3
Rated Dielectric Strength: 36KV / 95KV
Rated Interrupting Time: 3 Cycles
Control Voltage Range Charge: 100-140 VDC

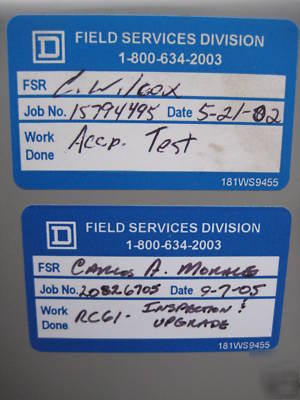

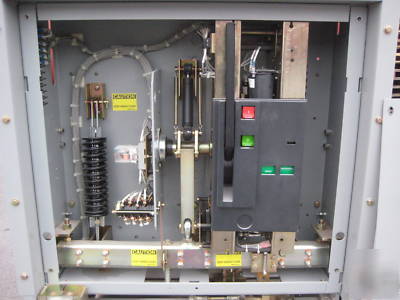

Schneider Electric Services converted these breakers in May 2002 from a mechanical Air Circuit Breaker to a retrofit Vacuum Breaker.
After the conversion, the Breakers had been installed in an IBM facility for a short period of time.
For more details on the retrofit Vacuum conversion please see:
http://ecatalog.squared.com/pubs/Electrical%20Distribution/0180BR9901.pdf
Our stock of Square D / Magnum Air Breakers were professionally removed by us and individually selected from a facility.
