Hp 8568A 100HZ-1.5GHZ programmable spectrum analyzer

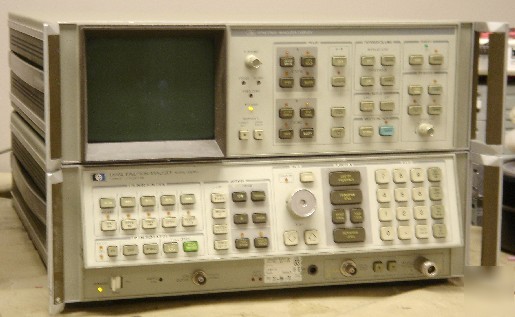

HP 8568A 100Hz-1.5GHz Programmable Spectrum Analyzer
* Microprocessor based, self-contained spectrum analyzer system
* Synthesized local oscillator gives frequency counter-like accuracy
* Resolution bandwidth: 10Hz to 3MHz
* Tunable marker with amplitude and frequency readout
* Internal tracking preselector provides high sensitivity (at 10Hz resolution BW, sensitivity < -135dBm)
* HP-IB interface is standard
* Up to six complete front panel settings can be stored and recalled via keyboard
The 8568A Spectrum Analyzer is a high performance unit for bench and remote operation which covers the 100 Hz to 1.5 GHz frequency range. Frequency stabilized local oscillators and an internal counter bring unequaled measurement precision to rf spectrum analysis. Exceptional frequency stability and local oscillator spectral purity enables the use of a 10 Hz resolution bandwidth to make difficult, close-in sideband measurements on rf signals. An internal microprocessor opens new horizons of operator convenience features. Digital display, store and recall of control settings, automatic zoom-in and signal track functions are administered by powerful firmware within the 8568A, simplifying operation. All 8568A functions are programmable via IEEE-488 interface. Complete with Cables and CD of Manual
