Eliwell ID974 defrost controller

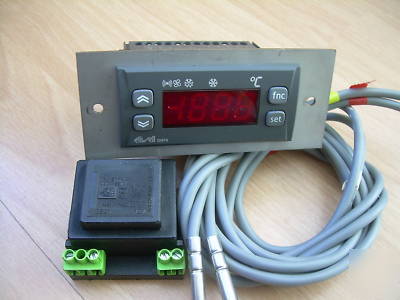

This item is taken out of an Industrial Freezer which we convert to a temperature controlled cabinet with a different control panel. Hense, the reason why this is unused but won't carry a 1 year garantee. However, I would replace if it is delivered not working. It also comes with 2 NTC temperature probes, 230V-12V transformer (this is the 12V version controller), and has small metal panel with cut out for mounting if you need it.
TECHNICAL DATA Frontal panel protection: IP65. Casing: plastic body in resin type PC+ABS UL94 V-0, inspection window in polycarbonate, buttons in thermoplastic resin. Dimensions: frontal panel 74x32 mm, depth 60 mm. Installation: on panel, with drilling template 71x29 mm (+0.2/ 0.1 mm). Use temperature: 5 55 C. Storage temperature.: 30 85 C. Use environment humidity: 10 90 % RH (not condensing). Storage environment humidity: 10 90% RH (not condensing). Viewing range: 50 110 (NTC); 55 140 (PTC) C without decimal point (selectable through parameter on 3 digit + 1/2 mark display. Analog inputs: two PTC or NTC inputs (programmable by parameter). Serial: TTL for connection to Copy Card or Televis system. Digital outputs: 3 relay contacts: first contact SPDT 8(3)A 250VA, second contact SPST 8(3)A 250VA, third contact SPST 5(2) A 250VA. Measuring range: from 55 to 140 C. Accuracy: 0.5% better than end scale + 1 digit. Resolution: 1 or 0.1 C. Consumption model 12V: 1,5 VA max. Power supply: 12 Va/c 10% or 230Va 10% 50/60 Hz. MODEL 8+8+15A Digital outputs: 3 relay conta
