Allen bradley 1756-PA72 /c 1756PA72 power supply
Rockwell Automation > PLC & HMI > I/O Products > ControlLogix > 1756-PA72/C
Allen-Bradley 1756-PA72 ControlLogix 85-265V AC Power Supply (5V @ 10 Amp), Rack Mount, Series C
1756-PA72 ControlLogix Power Supply, Input voltage: 85-265V AC; Input voltage, nom: 120V/220V AC; Input frequency: 47-63 Hz; Input power, max: 100VA/ 100 W; Output power, max: 75 W @ 0-60 C; Power dissipation: 25 W @ 0-60 C; Hold up time, VAC 50/60 Hz: 5 cycles @ 85V AC, 6 cycles @ 120V AC, 6 cycles @ 200V AC, 6 cycles @ 240V AC; Inrush current, max: 20 A; Current capacity at 1.2/3.3/5.1/24 V: 1.5/4/10/2.8 A; Isolation voltage: 250V continuous; Weight, approx.: 1.12 kg (2.10 lb).
Allen-Bradley 1756-PA72 standard power supply is attached directly on the left end of the chassis, where it plugs directly into the backplane. The power supply determines which chassis can be used. The 1756-PA72 power supply can be used with ControlLogix chassis Series A and B. The 1756PA72 power supply mounting location: Left side of 1756 chassis.

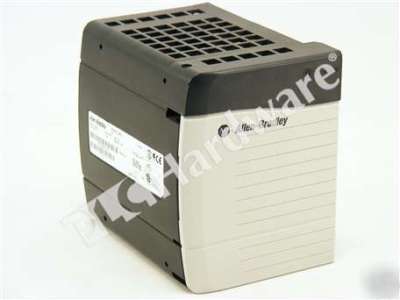

One Allen Bradley 1756-PA72 Series C, ControlLogix 85-265V AC Power Supply (5V @ 10 Amp), Rack Mount, in excellent working condition.
The unit is Series C, Cat. Rev. A01, Rev. A01, Manufactured in 04/05. THE PLASTIC DOOR HINGE IS BROKEN AS SHOWN IN THE PICTURES BELOW.
