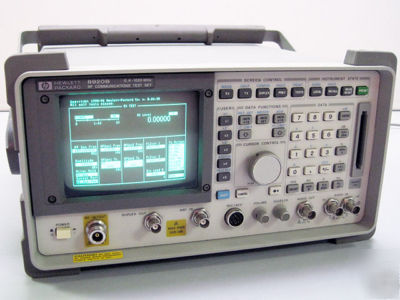

Agilent hp 8920B rf communication test set loaded c
AGILENT HP 8920B RF COMMUNICATION TEST SET LOADED C
The 8920B is a full-function test set based upon the Agilent 8920A design but with increased measurement speed, accuracy, and larger user memory (928 kbytes standard). The 8920B uses PCMCIA memory cards for data storage and radio test programs. The 8920B has the functionality, speed, and accuracy for testing land mobile radios, cellular telephones, and other communications systems while improving throughput and quality in manufacturing.
* More than 20 complete instruments
* Frequency range 250 kHz to 1000 MHz
* Accuracy of stand-alone instruments
* Flash ROM updates from front panel
* Built-in IBASIC computer with PCMCIA format memory cards
* Call processing subsystem for simplified cellular test and troubleshooting
* Frequency Range: 250 kHz to 1 GHz
* Output Level Accuracy RF In/Out Connector: +/- 1.2 dB (level greater than or equal to -127 dBm)
* Output Level Accuracy Duplex Out Connector: +/- 1.0 dB (-127 to +7 dBm)
* Output Level Range: -137 to -19 dBm into 50 ohms (std, other options available)
* Reverse Power: 60 watts continuous, 100 watts for 10 seconds/minute
* Non Harmonic Spurious: <- 60 dBc (at > 5 kHz from carrier)
* 001 = High Stability Time Base
* 004 = Tone/Digital Signaling
* 007 = Low Level RF Power Measurements
* 011 = CCITT Weighting Filter
* 013 = C-Message Weighting Filter
* 051 = 6kHz Bandpass Filter
