6" w 18" l sharp sg-618 3A surface grinder, 3 axis auto

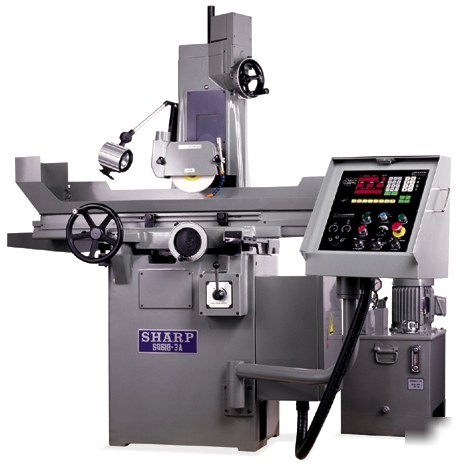

6" W 18" L Sharp SG-618 3A SURFACE GRINDER, 3 Axis Auto
6" Width 18" Length Sharp SG-618 3A SURFACE GRINDER, 3 Axis Automatic w/IDF
MODEL: SG-618 3A - 3 AXIS AUTOMATIC w/Numerically
Maximum grinding length: 19.7"
Maximum distance: table to spindle center: 15.7"
Working Surface (W x L): 5.9 x 18.3"
Maximum longitudinal travel: 21.6"
Hand feed per revolution: 2.7"
Intermittent feed: 0.006 - 0.3"
Continuous transverse feed: 47.2 IPM
Graduation of hand wheel: 0.0005"
VERTICAL MOVEMENT OF WHEEL HEAD
Hand feed per revolution: 0.04"
Graduation of hand wheel: 0.0001"
Feed rate (coarse/fine): 0.00005 - 0.00495"
Total stock removal: 0.00005 - 9.99995"
Fine feed stock removal: 0.00005 - 0.00495"
Traverse and Plunge Grinding Auto Cycles
Spindle motor: 1-1/2 hp (220v or 440v 3ph /60 cycle)
Floor space (W x H x L): 83 x 51 x 80"
Net weight (approximately): 2,200 lbs.
DOUBLE 'V' WAYS FOR CROSS TRAVEL AND ONE 'V', ONE FLAT
WAY FOR LONGITUDINAL TRAVEL-BOTH WAYS ARE HAND-
SCRAPED AND COVERED WITH TURCITE "B" COATING
ACCURATE SLOT GRINDING ACHIEVED USING SADDLE
LOCKING SYSTEM COMBINED WITH CROSS FEED BALL SCREW
ADVANCED HYDRAULIC SYSTEM WITH INDEPENDENT OIL TANK
PROVIDES VIBRATION-FREE TABLE MOVEMENT
HYDRAULIC TABLE STROKE SETTING
10" x 3/4" Grinding Wheel (With Inverter Spindle Drive)
