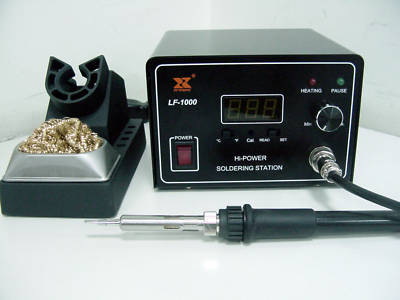

Xytronic lf-1000 soldering station
The LF-1000 incorporates electronic circuitry which enables the user to alter tip temperature from 200 to 450 (392-842 ) without changing tips or heating elements. Also, with the simple flip of a switch on the front panel, the temperature readout is changed from Celsius to Fahrenheit easily. The temperature is maintained within +/-3oC (+/-6oC) of its operating temperature by a thermocouple sensor placed in the heating element, allowing the tip to rest against the sensor. The high power results in both a rapid heat-up and super fast recovery. The revolutionary Zero Voltage electronic switching design also protects voltage and current sensitive components (CMOS devices. etc.) against damaging current and transient voltage spikes commonly produced by less efficient, mechanically switched stations. The power unit is isolated from the A.C. line by a transformer and allows only 32Vac to drive the heating element. An external calibration port on the face of the unit for quick and convenient precision temperature adjustments. The many features of the product make it the ideal tool for service and repair technicians as well as production line soldering operations. This unit is developed to meet the present and future lead-free soldering needs of the electronic production industry and is ideal for use at any AC outlet.
