Stanley magic swing door operator
THESE SELL USED FOR $1000 AND UP
Magic-Swing operators continue to set the standard for high reliability and smooth, quiet operation with its proven high-performance mechanics, advanced microprocessor controller and sensor systems that ensure safe operation at all times. Stanley microprocessor controller eliminates the need for moving parts, so it greatly increases uptime and reliability.
The heavy duty operator is suited for extreme environments applications and will provide safe pedestrian movement at all times when suitable activation and safety devices are installed.
Door forces and speeds generated during power opening and manual opening, in both directions of swing, as well as spring closing, are set to comply with safety standards.
* Work with every type of sensor that Stanley makes for maximum design flexibility and convenience.
* Requires only simple tune-in adjustments for fast, trouble-free installation.
* Resist wind and stack pressure conditions to maintain smooth, controlled operation.
* 54 (1371mm) in panel width
* 700 pounds (320kg) in panel weight
* Heavy Duty - Extreme environments and abuse
* Full Energy applications (ANSI A156.10)
* HEADER SIZE: 6 (152mm) high x 5-1/2 (140mm) deep
* SWING DOOR PANELS: up to 54 (1371mm)
* DOOR PANEL WEIGHT: up to 700 pounds (320kg) standard, up to 5000 (2270kg) pounds optional

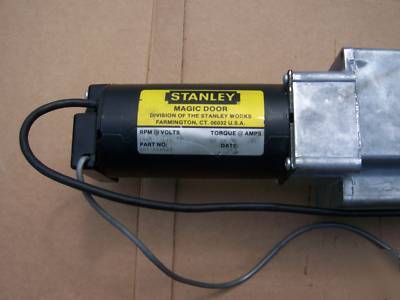

* DRIVE SYSTEM: 1/4 HP DC motor, gear drive, ball screw actuator, rack & pinion
* CONTROLLER: microprocessor based, safety logic, watchdog LED
* POWER REQUIRED: 120 VAC, 5 amps min.
* CODE COMPLIANCE: UL, cUL, ANSI A156.10, UBC, BOCA, ICBO, NFPA 101
