30" scherr-tumico 22-2600 optical comparator

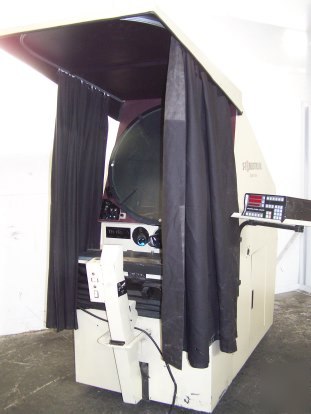

30" Scherr-Tumico 22-2600 OPTICAL COMPARATOR
30" Screen Scherr-Tumico 22-2600 OPTICAL COMPARATOR
30" SCHERR-TUMICO OPTICAL COMPARATOR & MEASURING MACHINE
"QUADRA-CHEK" MODEL #200 2 AXIS DRO
W/PROGRAMMABLE GEOMETRIC FUNCTIONS & EDGE DETECTION
MODEL: 22-2600 S/N:T001202 Mfg. 2000
SCREEN DIAMETER................................ 30"
SIZE OF WORK TABLE............................. 8" X 35"
MEASURING CAPACITY- LONGITUDINAL TABLE TRAVEL.. 12"
- VERTICAL TABLE TRAVEL...... 9"
ANGULAR MEASURING CAPACITY..................... 360 DEG.
HELIX ADJUSTMENT-BY SWINGING LAMPHOUSE:........ 10 DEG. LEFT AND RIGHT
ALLOWABLE WORK LOAD ON TABLE:.................. 500 LBS.
FLOOR SPACE: 50" L-R X 96" F-B (W/VISOR) X 80" HIGH
-"QUADRA-CHEK" MODEL #200 2 AXIS DRO
- 2-AXIS VARIABLE SPEED JOYSTICK CONTROL. A SEVEN-FUNCTION
KEYPAD ALLOWS REMOTE OPERATION OF "QUADRA-CHEK" DRO.
THE CONTROL MAY BE HAND HELD, PLACED ON STAGE OR
ATTACHED TO A QUICK RELEASE BRACKET ON LAMPHOUSE.
- MACHINE IS PORTABLE ON CASTERS
