28"/50" x 192:" landis roll cylindrical grinder

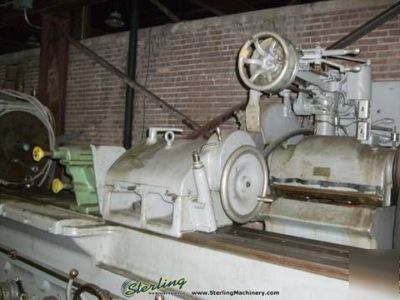

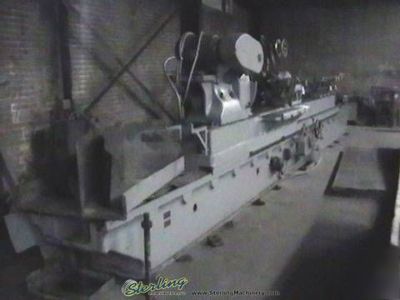

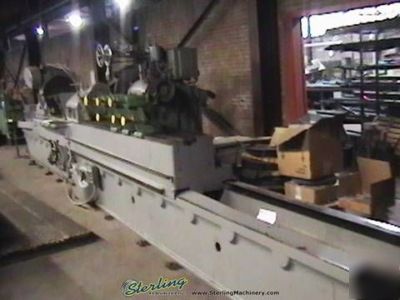

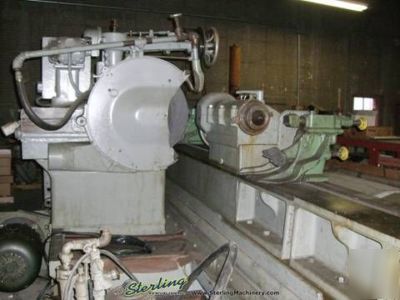

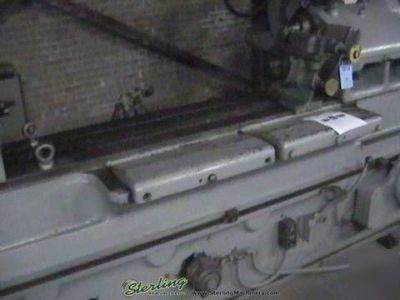

ONE Preowned LANDIS Roll Cylindrical Grinder
CAPACITY .. .. 28"/50" X 192"
SWING OVER BED WAY 28"
SWING IN GAP . 50"
MAX. LENGTH OF GAP . 58"
DISTANCE BETWEEN CENTERS 192"
GRINDING WHEEL SIZE 30" X 3"
GRINDING WHEEL SPEED ... 750 RPM
TABLE SPEEDS 3 - 120 IPM
WORKHEAD SPEEDS 12 - 120
DIMENSIONS (L X D X H) .. 36' X 9' 6" X 7' 3"
WEIGHT . 43,000 LBS
PRICE: ON SITE, (HAMMOND, IN) ... . $50,000.00
