Hobart / pandjiris welding manipulator system
#1477 Hobart/Pandjiris Welding Manipulator System
1 ea S910003P Pandjiris / Hobart 8 Vertical Variable Polarity Seamer. System includes an integrated Hobart VP-300S power supply, gas control unit, 8 x 8 manipulator and 8 vertical seamer bed, 4-roll wire feeder and all welding equipment Please Ask for a Detailed Specification Sheet !!
Very Good Condition !! $119,500.

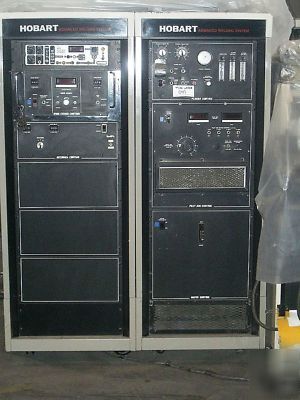

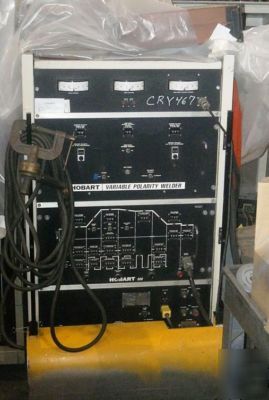

Power Supply Hobart VP-300S Variable Polarity Power Supply :
- 3 mass flow controllers, 3 mass flow meters

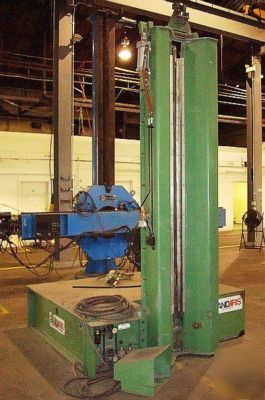

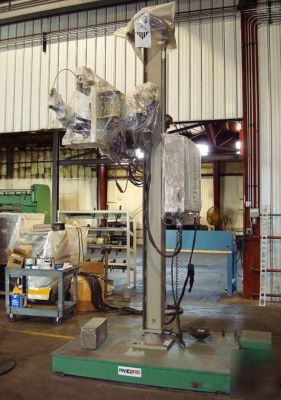

Manipulator & Part Fixturing :
- Vertical seam welding part positioning fixture
- Weld head locator (8 x 8 travel) motorized precision roundway / screw feed
- Motorized horizontal control
- Integrated with remote pendant
Precision Torch Positioner Includes:
- X axis torch slide (12 travel)
- Z axis torch (AVC) slide with DC servo
- Heavy duty 4 roll wire drive system
- Capable of driving .023 to .062 diameter wire
- Dynaflux water circulator and system integration
Integrated Hobart VP-300S power supply, gas control unit, 8 x8 manipulator and 8 vertical seamer bed, 4-roll wire feeder and all welding equipment
Machine Location: Cincinnati, OH
