> Hantek portable handheld oscilloscope r DSO1060 60MHZ

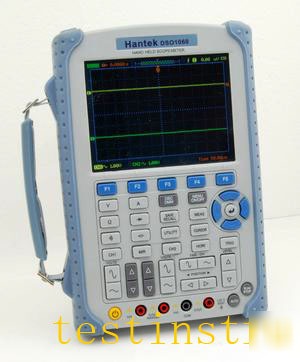

Hantek portable handheld oscilloscope r DSO1060 60MHZ
Connected to the computer can be used as a virtual oscilloscope
6000 COUNTS Digital Multimeter
22 kinds of waveform measurements
ALT MAG, easy to search for signal
FFT Provide spectrum analysis function
ALT trigger mode, dual time base, easy to observe two signals of different frequency
Test signal more than 100MHz by ETS mode
Document management, and convenient file storage and management
Software(V1.00 Manual Firmware(V1.56)
4. Characteristic(Handheld Scopemeter/Oscilloscope/Multimeter)
l Excellent Industrial Design .Direct key for Each Channel ,Time base ,Trigger and DMM,easy to operate.
l Large 5.7 inch TFT Color LCD Display ,Led backlight,Display clearly.
l USB Host/Device 2.0 full-speed interface ,support removeable disk.
l High Bandwidth 60MHz Oscilloscope ,and 6000 COUNTS high precision DMM.
l High refresh rate High Real-time Sample Rate 150MS/s, 50GS/s Equivalent-time Sample Rate.
l FFT , + , - , * , / ,X-Y, 22 kinds of auto measurements, PASS/FAIL Check ,easy to use on production line.
l Multiform Trigger mode ,2 separate Time Base in ALT Trigger mode ,easy to see 2 signal with different frequency.
l 1000 waveforms save and record.
l Battery Power Operation (Installed) Industrial Design.
l Save waveform in the following: jpg/bmp graphic file, MS excel/word file.
l Dimensions (mm):240(L)x165(W)x50(H), be carried easily.
Resistance: 1M ; Capacitance: 15 pF
32k at Single Channel, 16k at Dual Channel
Edge, Pulse Width, Alternative
Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot
Frequency,Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Delay time from ch1 rising edge to ch2 rising edge
Delay time from ch1 falling edge to ch2 falling edge
Manual, Track, Auto Measure Modes
CH1+/- CH2, CH1xCH2, CH1/CH2, FFT, Invert
Voltage, Current, Resistance, Capacitance,Diode & Continuity
5.7 Inch with LED Backlight Display
240 (Vertical) x 320 (Horizontal) Dots
USB Host / Device 2.0 Full Speed Supported
AC 100V ~ 240V, 50Hz ~ 60Hz; DC Input: 8.5VDC, 1500mA
Oscilloscope and Multimeter Independence
Operating system: Windows NT, Windows 2000, Windows XP ,VISTA
8.Batteries (inside back cover, it is turned off)
