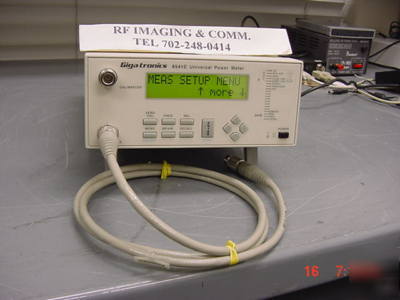

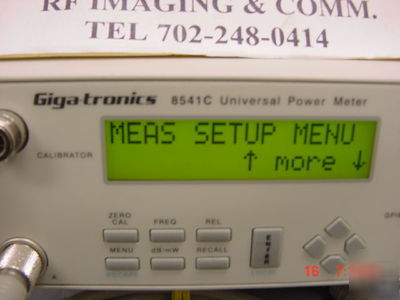

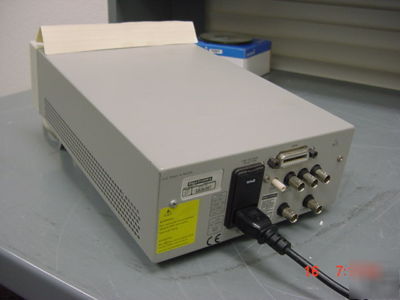

Gigatronics 8541C power meter with cable
Description: Gigatronics 8541C RF Power Meter
Frequency Range 100 kHz to 40 GHz, depending on sensor used
Power Range: -70 to +47 dBm, depending on sensor used
Choose from an extensive line of CW, Peak, Modulation and True RMS sensors
Single Sensor Dynamic Range:
* CW Power Sensors: 90 dB (-70 to +20 dBm)
* Modulation Power Sensors: 87 dB CW, 60 to 80 dB Modulation Mode
* Peak Power Sensors: 50 dB CW, 47 dB Peak
Automatically measure average power of TDMA, GSM, and CDMA signals
Optional Time Gating to program a measurement's start time and duration
Achieve 500 reading per second over GPIB
Use the Fast Buffered Mode to capture up to 4000 readings per second
Measure the instantaneous peak power level of a pulse modulated signal
