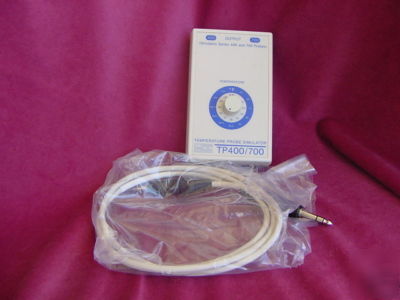

Fogg TP400/700 temperature probe simulator (used)
Simulates YSI 400 and 700 Series Probes simultaneously at 11 temperatures from ZERO to 45 C.
- Verify, test and calibrate temperature monitors that use YSI 400 and 700 Series Thermistor Temperature Probes.
- Simulates YSI 400 and 700 Series Probe at 11 temperatures from ZERO to 45 C.
- Temperature accuracy of +/-0.05 degrees C for all settings.
- Cables are available to connect the Simulator to most temperature measuring instruments.
The TP400/700 Temperature Probe Simulator is intended primarily for testing and troubleshooting temperature measuring instruments that use the YSI 400 and 700 Series Temperature Probes. When substituted for the probe, the Simulator provides precise and stable outputs for setup and calibration of temperature measuring instruments. Since the Simulator eliminates the probe as a variable, you can quickly determine whether measurement problems are caused by the probe or the measuring instrument. Other useful applications of these simulators include training personnel in the correct setup and operation of temperature measuring instruments and in quickly identifying a malfunctioning temperature probe.
Fogg Temperature Simulators contain thermally stable precision resistive networks. A rotary switch permits selection of eleven temperatures from 0 degrees C to 45 degrees C with an accuracy of +/-0.05 degrees C at each setting. Simulated Temperatures are designated in both degrees Fahrenheit and Centigrade.
Cables are available to connect the Simulator to most temperature measuring instruments. Typical instruments are electronic thermometers, patient monitors, and temperature controlled analytical laboratory instruments.
