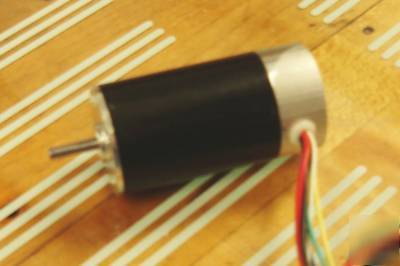

Elecmech bldc motor 12VDC 4000 rpm with internal driver
THIS BLDC MOTOR IS 36MM IN DIAMETER AND 70MM LONG. THE SHAFT DIAMETER IS 4MM. MOUNTING IS 4- M3 X 0.5 HOLES ON A 25MM BOLT CIRCLE. MOUNTING PILOT IS 13MM DIAMETER AND 2MM HIGH.
THIS MOTOR HAS LEADS BROUGHT OUT TO CONTROL DIRECTION AND SPEED CONTROL VIA AN EXTERNAL POTENTIOMETER (NOT SUPPLIED). ALL DRIVER ELECTRONICS ARE LOCATED INSIDE OF MOTOR HOUSING.
THIS IS AN EXCELLENT PACKAGE FOR DESIGNERS, DEVELOPERS OR USERS OF BRUSH TYPE MOTORS WHO ARE THINKING OF FUTURE DEVELOPMENT OF BLDC UNITS FOR LIFE CONSIDERATION, LOWER EMI/RFI OR CHANGES IN THEIR CONTROL SYSTEMS. WITH OVER 70 MILLION BRUSH TYPE MOTORS OF THIS SIZE IMPORTED EVERY YEAR, THE POTENTIAL FOR CHANGING TO BLDC IS VERY VIABLE FOR LIFE, EMI AND SPEED CONTROL PURPOSES.
THIS PACKAGE COULD ALSO BE USED FOR TEACHING BLDC TO STUDENTS, ASSOCIATES OR YOUNG ENGINEERS.
LEAD LENGTH- MOTOR TO DRIVER- 10 INCHES.
APPLICATION ASSISTANCE AVAILABLE. THIS IS A HIGH QUALITY PACKAGE THAT ULTIMATELY BE CAPABLE OF REPLACING SOME OF THE BRUSH TYPE DC MOTORS IN THE WORLD. NO BRUSHES- LIFE IS EXTENDED BASED ON INTEGRITY OF THE ELECTRONICS.
THIS UNIT CAN ALSO BE MOUNTED ON GEARBOXES OR INTO AXIAL FLOW FANS.
USES NEODYMIUM MAGNET TECHNOLOGY FOR THE HIGHEST PERFORMANCE POSSIBLE.
OEM Pricing: 100 pieces of motor $55.00 SPECIAL PRICING FOR 10,000 PIECES AND HIGHER.
