Nsk nakanishi ma series air motor am-2526R 0.98"
Nsk Nakanishi MA Series Air Motor AM-2526R 0.98"

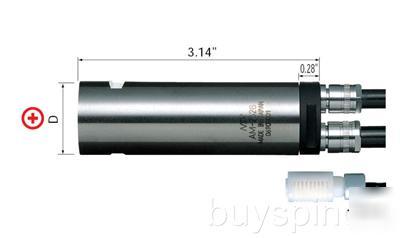

AIR MOTOR AM-2526R (Forward Rotation)
Ultra-precision vane type air motor.
Rigid stainless steel (SUS416) outer housing.
MA Series has been designed to operate smoothly at high speed for long continuous cutting and grinding by connecting an air line kit directly between the air compressor and the air motor.
Air supply and exhaust air hoses are supplied with an air motor. Air supply hose is provided with metal fitting to connect to 0.24"( 6 mm) one-touch joint. Air exhaust hose is supplied with silencer.
-AM-2526R Air Motor; Hose (K-204) : 6 ft Silencer (K-208) Wrench (22 x 27) : 1 pc.
AM-2526R Air Motor Specifications
Ultra precision, compact, vane-type air motor provides high torque with small volume of air consumption. Withstands long continuous operation without heat generation. Silencer keeps noise to a minimum.
Motor Speed 24,000 min-1(rpm) (71PSI)
Hose Diameter Air Intake I.D. 4.5 mm x O.D. 6.7 mm
Exhaust Air I.D. 5.5 mm x O.D. 7.5 mm
Gang slide NC lathes can be transformed into complex machining centers.
Specialized machine design will be made compact and universal.
Mounting MA Series on existing equipment can eliminate secondary operations or the equipment can be turned into a special purpose machine.
The MA Series is applicable to secondary operation machines, single purpose machines or special machining and grinding machines.
The air motors are explosion proof and do not generate heat even in continuous use.
When MA Series is used at low motor speed, a speed reducer (ARG-H2504N, or other selections) is added in order to obtain the speed of your choice.
Collet, Jacobs drill chuck, saw arbor and grinding stone arbor are available for grinding, drilling, milling, slitting, chamfer and deburring operations.
Drilling Capacity Reference Table
This table summarizes the drilling capacity for the MA Series spindles. Please use this table as a guide for the selection of the proper model given the torque, speed and size requirements for your application. Data is given for three materials Medium Carbon Steel (S45C), aluminum and brass.
*Conditions : High speed steel drill was used with a feed rate of 60mm/min. Tool life was not considered in determining the above capacities. Use this table as a reference to extrapolate suitability for a given application.
