New (3) syrelec repeat cycle timers 1 amp out 24-265VAC

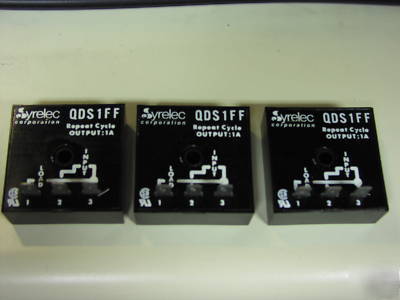

YOU ARE PURCHASING (3) EACH OF THE NEW SYRELEC (NOW CROUZET) SOLID STATE REPEAT CYCLE TIMERS OF THE QDS1FF SERIES WITH THE FOLLOWING SPECIFICATIONS:
(1) SYRELEC PART NUMBER: QDS13F1F
(4) 2" SQUARE ENCAPSULATED CASES
(6) INPUT: 24 VAC, 48 VAC, 110 VAC, 220 VAC, 265 VAC MAXIMUM +/-15% 50/60 Hz.
(7) MAXIMUM POWER CONSUMPTION:
(8) OUTPUT.......................SCR
(9) OUTPUT RATING.............MAX:1A@20C
MINIMUM....................10 mA.
(10) VOLTAGE DROP AFTER TIMING....3.5VAC
(11) REPITITION ACCURACY...+/-0.5%
OFF TIME........................ 1 SECOND
ON TIME......................... 4 SECONDS
(12) RESET TIME.......100 ms AFTER TIMING
(14) LEAKAGE CURRENT DURING TIMING
(15) PEAK SURGE VOLTAGE..1400 V, 100 usec
(16) PEAK SURGE CURRENT..20A < 10 ms.
(17) TERMINALS: FASTON 1/4" (6.35mm)
(18) WEIGHT.......1.9 OZ. (55g)
THESE UNITS ARE NEW AND HAVE NEVER BEEN INSTALLED.
