New signal hound usb spectrum analyzer 1 hz to 4.4 ghz

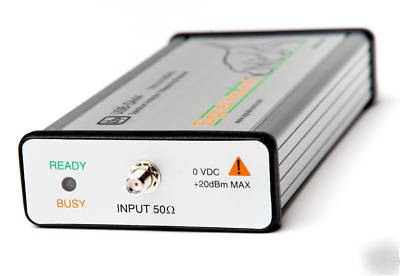

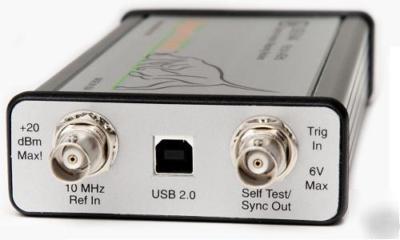

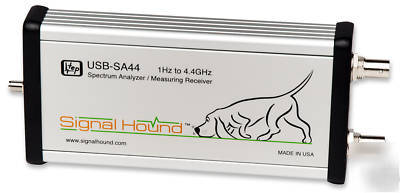

The Signal Hound USB-SA44 is a USB-based 1 Hz to 4.4 GHz compact spectrum analyzer. It is simple to use and an effective troubleshooting tool for general lab use, engineering students, ham radio enthusiasts, and electronics hobbyists. Using recent innovations in RF technology, the Signal Hound has the sensitivity, accuracy and dynamic range you d expect in a unit many times its cost.
Features* RF Frequency Range: 1 Hz to 4.4 GHz
* Wide dynamic range: -140 dBm to +15 dBm
* Resolution bandwidths (RBW) of 0.1 Hz to 250 KHz and 5 MHz
* Includes a High Dynamic Range Measuring Receiver
* 0.25 dB relative accuracy
* 0 dBm to -125 dBm, 150 KHz to 1 GHz
* 0 dBm to -115 dBm, 1 GHz to 4.4 GHz
* Adjustable digital audio filters
* Accurate AM and FM measurements
* No external power supply needed - draws power from USB
* Powerful Digital Signal Processing happens on the PC
* Software and Hardware included for one low price
* Compatible with Windows operating systems
* AM and FM Demodulation Measurements
* USB 2.0 communications at 480 MBPS
Visit SignalHound.com for complete specifications, demos and downloads.
