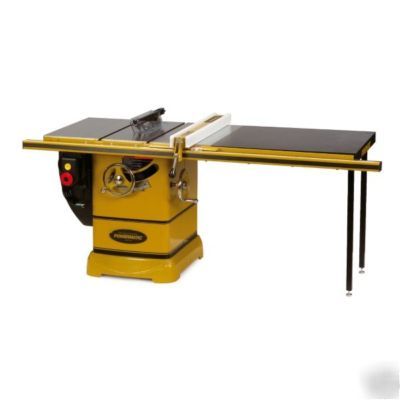

New powermatic PM2000 10" 3 hp table saw-50 accu-fence
The award-winning PM2000 Table Saw sets a new standard for innovation with an array of patented features and massive body design. It boasts the heaviest cast-iron base in its class that virtually eliminates table vibration. A wide stance, heavy-duty, one-piece trunnion has a C-face mounted motor, helping to relieve weight at the saw arm pivot shaft and promoting easier raising and tilting of the saw blade. The left tilting blade prevents stock from binding between the blade and fence, substantially reducing the possibility of kickback. Poly-V drive belt system results in a quieter, more efficient power transfer from the motor to the arbor with virtually no vibration and less heat build up.
Features: Powermatic PM2000 10" 3 HP 1 Phase 230V Table Saw
* Wide stance heavy-duty trunnion
* Enclosed cabinet with cast-iron base for rigidity
* Precision-ground high luster cast-iron table tops with front edge bevel
* Quick-release riving knife with independent leaf blade guard and anti-kickback pawls
* Built-in retractable caster system
* Adjustable angle indicators on the blade bevel scale for repeatable bevel cuts
* Heavy-duty deluxe micro-adjust miter gauge with aluminum extruded 24" extension fence
* Industrial magnetic controls
* Accu-Fence System ensures accuracy
* Built-in 4" dust collection port
* Heavy-duty chrome plated hand-wheels
The Powermatic 1792000K Includes:
* PM2000 10" 3 HP 1 Phase 230V Table Saw - 1792000K
* 10" Standard Left & Right Cast-Iron Extension Wings
* (Blade and Power Cord Not Included)
Table in Front of Saw Blade at Maximum Cut Depth
85" x 37" x 34-1/2" (L x W x H)
