Fluke 199 scopemeter 200MHZ 2.5 gs/s #174

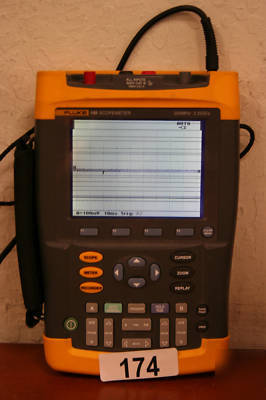

This item is in great shape, but the screen has a few horizontal lines out on it. Please look at the pictures carefully.
We do not have the expertise necessary to test this unit beyond turning it on, as a result this unit has not been thuroughly tested.

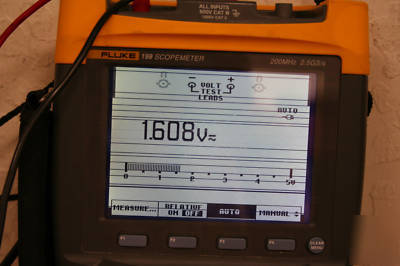

We metered this unit with a D-cell battery (see picture). This reading is consistent with other meters we have.
This item DOES NOT include a power supply, but you can find one here.
* Dual input - 60, 100 or 200 MHz bandwidth
* Up to 2.5 GS/s real-time sampling per input
* Connect & View automatic triggering, a full range of manual trigger modes plus external triggering
* 27,500 points per input record length using ScopeRecord mode
* Automatic capture and replay of 100 screens
* 26 automatic waveform measurements
* Cursors, zoom and real-time clock
* NiMH battery pack (time on charge might be shorter due to age)
* 1000V CAT II and 600V CAT III safety certified

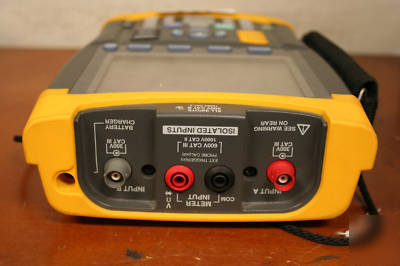

* 1000V independently floating isolated inputs
