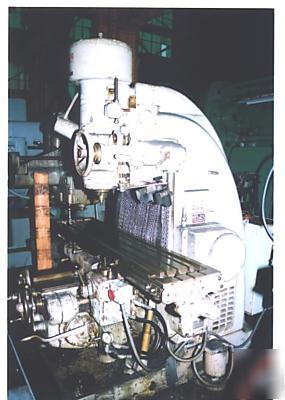

Vertical mill 415-16-vdt cincinnati dial type
#415-16-VDT CINCINNATI Dial Type Vertical Mill, S/N 310434V73-0009, New 1973
Table working surface: 16 1/4" x79 3/4"
Max.distance, spindle nose to table: 22 1/8"
32 longitudinal + cross feeds: 3/8 to 90 IPM
32 vertical feeds (knee): 3/16 to 45 IPM
Rapid traverse rate: longitudinal + cross: 150 IPM
Power feed and rapid traverse to vertical head
Turret stop, 4-position with dial indicator
15 HP 3/60/230-460 Volt main drive motor + controls
Machine wired for 3/60/460 volt
Floor space: 140 1/4" LR x 117 15/16" FB
