Used- dake hydraulic h-frame tire press, 150 ton, model
Used- Dake Hydraulic H-Frame Tire Press, 150 Ton, Model

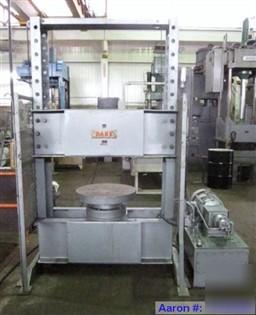

Used- Dake Hydraulic H-Frame Tire Press, 150 Ton, Model 33-179. Upacting type, floor standing. Distance between side frames 48" L-R, distance between bed channels 12" F-B, distance over bed channels 20" F-B. Ram pressing plate 25" diameter, stroke of ram 0 - 12" maximum, daylight opening 15" - 50" maximum (adjustable in 5" increments via hand winch).Main ram diameter 7.75" at 6360 PSI - 150 tons. Power unit Blackhawk hydraulic pump, driven by 10 HP 1760 RPM 220/440/3/60 motor. Controls- Pushbutton operation with stroke & pressure control Operator hand lever with dump valve Pressure gauge.
