Square d transformer 30 kva 480/208Y/120 3PH 30KVA

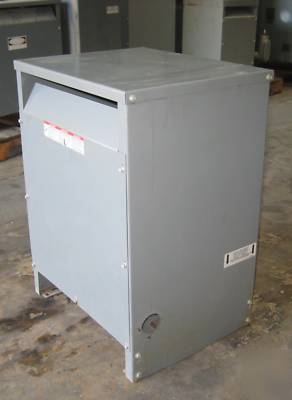

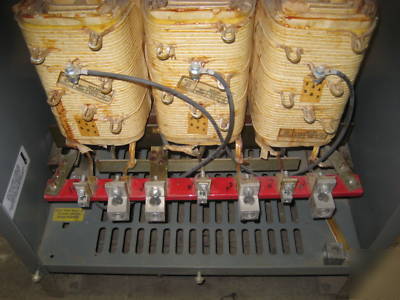

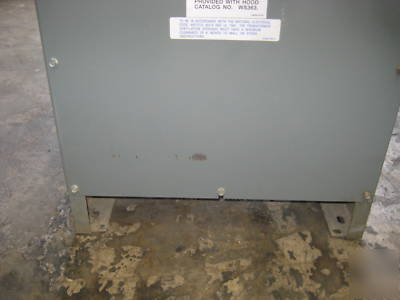

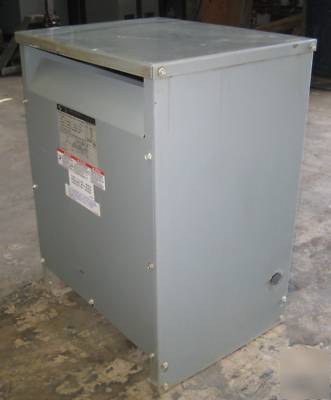

This Transformer is in Good Condition Both Externally and Internally. Small scratch in front panel, see Pictures.

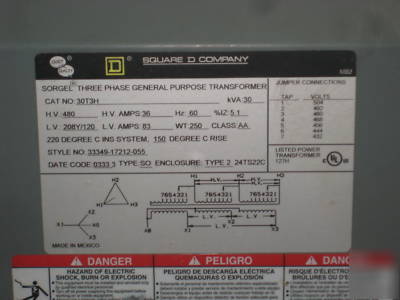

Three Phase General Purpose Transformer
H.V: 480 H.V. Amps: 36 Hz: 60 %IZ: 5.1
L.V. 208 Y / 120 L.V. Amps: 83 Wt: 250 lbs Class: AA
220 Degree C. Ins. System, 150 Degree C. Rise
Date Code: 0333 3 Type: SO Enclosure :Type 2 24TS22C
20"(Width) x 16" (Depth) x 28" (Height)
