New ifm efector inductive proximity switch, IG0344

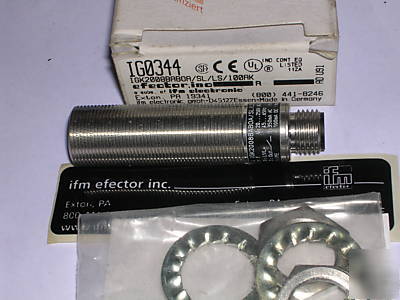

New IFM Efector Inductive Proximity Switch, IG0344
Inductive sensor Metal thread M18 x 1, 3 Pin Quick Disconnect Plug
Sensing range 8mm [f] flush mountable
Current rating (continuous) [mA]
250 AC (...70 C) / 350 AC (...50 C) / 100 DC
< 1 (250 V AC) / < 0.8 (140 V AC) / < 0.8 (24 V DC)
mild steel = 1 / stainless steel approx. 0.7 / brass approx. 0.45 / Al approx. 0.4 / Cu approx. 0.33
brass white bronze coated; PA; PBT
Recommendation: check the unit for reliable function after a short circuit.
Note: miniature fuse to IEC60127-2 sheet 1,
