New 31" vinyl cutter,cutting plotter+free mail

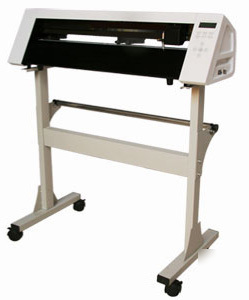

NEW 31" ADHESIVE VINYL CUTTER CUTTING PLOTTER SIGN MAKE
1) Forward direction and reverse direction paper feed
2) Emergency stop and free setting original point
4) Cutter speed and cutter pressure memory and storage
5) Double photoelectric reset and without any collision
6) Perfect output and without any saw tooth at high speed
7) Using the most advance subdivision circuit and having low noise
8) Using switching power supply and its operation that isn t influenced by voltage change
9) Circuit uses low power consumption and doesn t need fan for heat radiation so as to ensure long and reliable operation
Maximum paper feed width: 31.5" (800mm)
Real cutting range: 27.6" (720mm)*limitless length
Directly Supports CorelDraw as a printer, Supports FlexiSIGN.
The ARTCUT software offers a solution for sign making need, from basic vinyl cutting to advanced large-format priming. It is contain creating and editing tools and easy for you to complete your design functions.
System Compatible: Win98/2000/XP/Vista(32 bit)
Consumption Power: 100V( 10%) or 220V( 10%)
Cutter pressure: 1-400g Grade 16~32
Mechanical Resolution: 0.001"/step(0.0254 mm/step)
Blade Type: Swivel Standard blade (Compatible with Roland blade)
Interfaces: USB 2.0 and RS232 serial interface
Commands/Language: HP-GL / DMPL compatible
a. Paper can t be driven: The pressure is too large (use two paper pressure rollers).
b. Paper runs tilting: The paper isn t installed correctly, the pressures of paper pressure rollers aren t even, use three paper pressure racks, one rack is on the left, two other racks are pressed down closely.
c. The paper pressure handle is broken: Change new handle.
d. The paper pressure rack can t move on the guide rail: Apply lubrication oil to the contacting place between the paper pressure rack and the guide rail.
f. The paper pressure roller can t press down paper: The pressure is too small; the rubber ring of the paper pressure roller is worn.
a. The connecting cable is damaged.
b. The COM port of computer is damaged.
c. The main board is damaged or MAX202 on the main board is damaged.
d. The machine is turned off wrongly before finishing the cutting last time.
e. The material settings don t conform to the output length and width.
f. The space of new computer is too large, install more software.
g. The axle isn t earthed and has static electricity interfere.
h. Setting displays (on the upper right corner) after ArtCut2006 Software clicks on cutting output, for flow type control in setting port (1) select DTR/DSR, RST/CTS (2) select XON/XOFF in.
a. Connecting cable is damaged.
b. The main board is damaged or MAX202 on the main board is damaged.
c. COM port of compute is damaged.
e. Cutting Master hasn t added the softdog.
f. The equipment is selected wrong.
ArtCut2009 Software operates under Windows 2000, Windows XP,or Windows Vista and curves the parameters changed during output.
a. Find my computer , click the right key of mouse -> Attribute -> Hardware equipment manager -> Port (COM) -> COM1 -> Port setting -> Flow control -> XON/XOFF -> Conform. If there is COM2, use the same method as above, change the flow control in COM2 into XON/XOFF.
b. Enter ArtCut2009 carving, switch the page to carving output page. Find "setting" on the upper left corner -> Port setting -> Flow control -> Select "check mark" in squares before XON/XOFF and RTS/CTS, delete check mark before DTR/DSR -> Conform.
