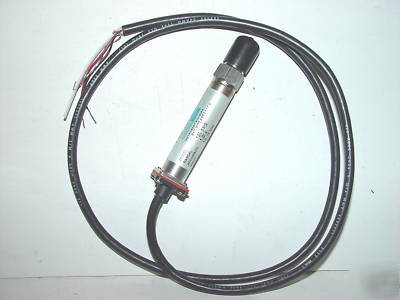

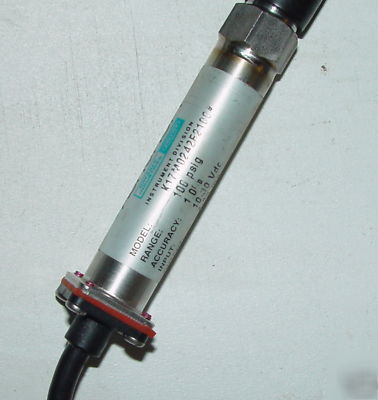

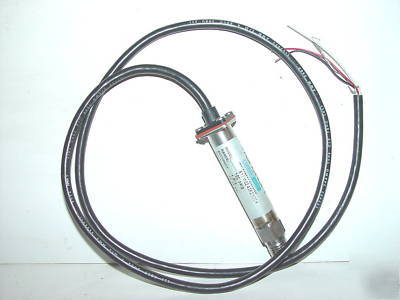

Ashcroft - K17M0242F2100 - pressure transmitters
K17M0242F2100 - Pressure Transmitters
Manufactured by -ASHCROFT-
Service: Liquid, Gas or Vapor
Output: 4-20 mA DC, limited to 30 mA DC (2 wire)
Power Supply: 10 to 36 VDC unregulated
Zero & Span Adjust: 2.8% each
Operating Temp.: -20 to 180 F (-29 to 82 C);
Compensated Temp.: -20 to 160 F (-29 to 71 C)
Response Time: Less than 1 ms
Stability: Less than 1% F.S./year
Repeatability: 0.05% F.S.
Thermal Effect: Zero: 0.028% F.S./ F; Span: 0.028% F.S./ F
Diaphragm: 17-4 PH stainless steel
Process Connection: 1/4 NPTM 316 stainless steel
Cable: 36 in. (92 cm), 24 AWG, PVC, shielded
Superior long-term stability and repeatability ( 1.0%)
Stainless steel NEMA 4X enclosure ideal for corrosive media
and hazardous environments
4-20mA current output with 10 to 36 VDC power supply
Wide range of pressure and electrical connections available
Intrinsically safe model available
Model Operating Range Price
K17M0242F2100 0 - 100 psi $344
