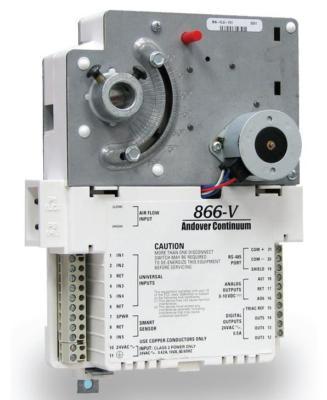

Andover controls I2866 / andover continuum I2866V
i2866/V VAV Controllers with Built-in Actuator
Universal inputs, an airfl ow sensor, Form
A triac-based outputs, and an integrated
damper actuator make these controllers
The i2865/866-V models feature a room sensor
input, which supports an Andover Continuum Smart
Sensor, or any standard room temperature sensor
The i2866-V model is identical to the i2865-V,
with the exception that it also offers damper
control reheat valves, lighting ballasts, etc.
The input configuration on the i2865/866-V
controllers consist of four full-range Universal inputs
that accept voltage (0-5VDC), digital (on/off), counter
signals (up to 4Hz), or temperature signals, plus an
on-board air flow sensor. The i2885-V controller
consists of two full-range Universal inputs. The
i2865/866-V models also offer an additional input to
support the Andover Continuum Smart Sensor, or
any standard room temperature sensor.
The i2865/866-V controllers contain three Form
A Triac-based outputs. The i2885-V controllers
contains two Form A Triac-based outputs. These
outputs can be used separately for on/off or
pulsed control of lighting, heat, and fan units or
for bi-directional control of dampers and valves; or
configured into one Form K Tri-state output and one
Form A output. (Note: Any two consecutive Triac
outputs can be configured as a Form K output.)
Outputs are rated for AC loads only. The i2866-V
controller also offers two (0-10V) analog outputs.
