Ultra scale master pro area takeoff and digitizer
Calculated Industries Model 6260
Area Takeoff Tool and Digitizer System
Calculated Industries Price: $229.95
New in unopened manufacturer's packaging.
Excludes Smart Takeoff! Software sold separately or included in Model 6270

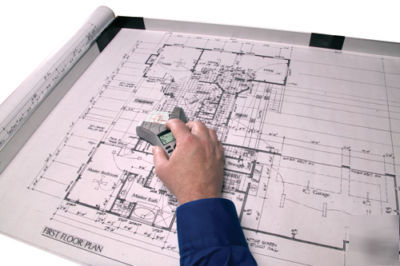

The Ultra Scale Master Pro is an affordable and portable area take off tool and digitizer system. Unlike expensive digitizers, the Ultra Scale Master Pro take off tool allows you to measure plans at your office or on the job site without the need for additional computing devices or software.
The Ultra Scale Master Pro take off tool is best suited for plans involving area (square foot/yard/meter) or polygon shapes like houses, pads, roofs, floors, etc. The Ultra Scale Master Pro digitizer can handle areas of irregular shapes like pools, landscaping beds, etc. The Ultra Scale Master Pro also does linear take offs, for things such as wall segments, piping, and wiring and cubic volume takeoffs for concrete, gravel, excavations, HVAC, etc.

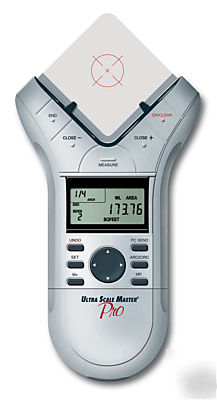

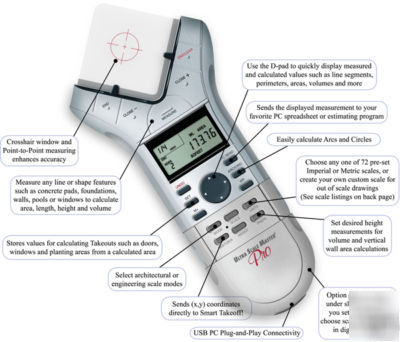

The Ultra Scale Master Pro's ergonomic design with large targeting window allows you to accurately measure and compute area, perimeter, and volume for simple or complex polygons, polylines, irregular shapes, arcs and circles.
72 built-in architectural and engineering scales allow you to measure plans and drawings up to 24" x 36" in size. Four custom scales allow you to measure out of scale drawings.
The Ultra Scale Master Pro digitizer can operate as a stand alone digital area take off tool, or you can connect it to your PC to transfer measurements into estimating and spreadsheet programs. It also can send digitized (x,y) coordinates to takeoff software programs like the Calculated Industries Smart Takeoff! program.
The Model 6260 Ultra Scale Master Pro is a complete digital area takeoff tool which can be used alone or can interface with takeoff and estimating software. The Model 6270 includes the Smart Takeoff! software.
The Ultra Scale Master Pro can measure simple and complex polygons, irregular areas like swimming pools, as well as linear takeoffs all without the need for a PC. As such, it s the first affordable, easy to use, and portable digitizer system.
Click here to see a product demonstration
* 72 Built in Architectural and Engineering Scales
* Measures linear units, area units and volume units
* Faster, more accurate point to point measuring
* Can provide summaries and details of lengths, surface areas, volumes, arcs, circles, etc.
* Completely portable and functional without additional equipment or a PC
* Accurate to plus or minus 40 thousandths of an inch
* Provides the same or better accuracy to systems costing $2100 to $4000.
* 24" x 36" coverage area works on all architectural plan sizes A-D
* It can send any measured or displayed dimensional value directly into any spreadsheet (Excel), text editing (Word) and most estimating programs that can accept a simple keyboard entry.
* Can be put into digitizer mode , which will then send the (x,y) coordinates of every click and measurement for those estimating programs that require this type of input.
* Operating Modes: Stand alone operation, PC input mode, Digitizer tablet coordinates entry (optional software required).
* Operating Systems Supported: Windows 2000 or XP
* Computer Interface: USB 1.1 and 2.0 compatible HID mode
* Footprint: 25.63 x 37.63 x 1.40 inch (651 X 956 X 36 mm)
* Active Measurement Area: 24 x 36 inch (610 x 914mm) reconfigurable
* Weight: 2.31 lbs (1049 grams)
* Footprint: 3.79 x 7.63 x 1.33 inch (98.4 x 193.6 x 28.5 mm)
* Weight: 7 oz (200 grams)
* USB power when connected to PC
* 4 AAA batteries when used as stand alone
* Range: 1 to 36 inches (25.4 to 914.4 mm)
* Accuracy: plus or minus 0.040 inch (1.02 mm)
* Operating Temperature: 41 to 104 F (5 to 40 C)
* Storage Temperature: 14 to 122 F (-20 to 60 C)
* Humidity Range: (0 - 95% non-condensing
* Standard: 3 - 5 business days
* Expedited: 2 - 3 business days
* Priority: Next business day
* Delivery times are not guaranteed when carriers encounter delays caused by weather or other conditions.
* Though defects in my products are very unusual, they can happen. If your item is defective, it will be replaced at no cost to you. Defective products must be reported to me within 3 business days of receipt.
* All returns, whether defective or not, must be approved by me before returning them. Contact me for return instructions.
