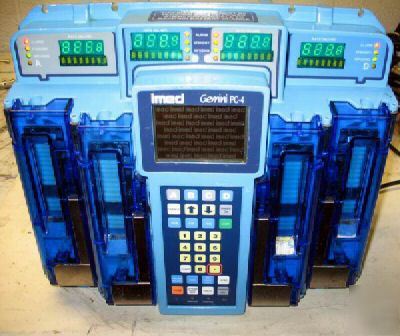

Imed gemini pc-4 infusion pump
IMED GEMINI PC-4 INFUSION PUMP. USED . NO MANUAL NO ACCESSORIES
90 - 132 VAC, Current draw 0.1A nominal (0.36A maximum), 10 watts, fused at 0.4A, 50/60 Hz, 3 wire, single phase
Note: Recommended maximum rate in the Controller Mode is 500 ml/hr.
Volume-To-Be-Infused Selections
1 ml/hr if set rate is 1 ml/hr or above; or set rate, if rate is 0.9 ml/hr or below
Container height 12" ( 30 cm)
10 2 psi (517 103 mmHg) for rates above 30 ml/hr. For rates of 30 ml/hr and below, the occlusion pressure will be less than 10 psi, an is rate-dependent.
25 - 517 mmHg in 25 mmHg increments to 500 mmHg.
INFUSION COMPLETE - KVO, EMPTY CONTAINER - KVO, MULTIDOSE COMPLETE, DELAYED START COMPLETE , LOW BATTERY, Maintenance Mode, Replace Battery, PAUSE, Paused, Powering Down in X Seconds, Panel/keypad locked, Panel/keypad Unlocked, LOW FLOW, START = XX:XX. SECONDARY, DOSE N = XX:XX and ANESTHESIA MODE - PAUSE
