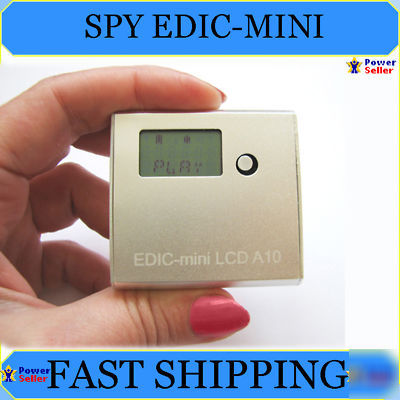

Digital recorder spy edic-mini lcd A10 300HR usb
Digital SPY Edic-Mini LCD A10 300Hr (17920 min) Digital Voice Recorder
Edic-Mini LCD may use all - journalists, students, managers of firms and employees of detective agencies and security services !
Edic-mini LCD A10
Edic-Mini LCD is very easy to use and has significant advantages over other tape recorders:
extended by 8 times the dynamic range (16 bit codec);
improved by 12 dB signal to noise ratio;
Wider range of recorded frequencies (100-7500gts), choice of 4/8/16 kHz;
lower current consumption in the recording mode (in 2raza), in standby mode - 5 times, in the mode VAS - 20 times;
faster data exchange with PC via a USB-adapter supplied;
timer for automatic switching of recording at a specified time;
* LCD indicator 22,2x12,9 mm;
* Power supply: 950 mAh Li-Pol rechargeable battery
* Battery life in record mode up to 350 hours;
* Built-in flash memory capacity: 150, 300, 600, 1200, 2400 hours;
* VAS system to compress pauses when recording;
* Built-in real time clock;
* Information protection system.
Edic-mini LCD A10- 150 hour - 399$
Edic-mini LCD A10- 300 hour - 450$
Edic-mini LCD A10- 600 hour - 699$
Edic-mini LCD A10- 1200 hour - 789$
* Record time: 150h, 300h, 600h, 1200h, 2400h
* Battery life in record model: 350h
* Power supply: Rechargeable battery
* Built-in flash memory: 1 Gb, 2 Gb, 4 Gb, 8 Gb, 16Gb
* Audio recording format : Mono
* Frequency band: 100-6000 Hz
* Voice Activating System: YES
* Current consumption: 1,5 mA - 3,6 mA (depending on the recording profile)
Specifications recorders series Edic-mini LCD :
Recording mode ExtraLongPlay(modified 2-bit ADPCM, 8 kHz sampling frequency, 16Kbit / sec)
from 560 to 17920min (flash memory from 64MB to 2GB);
16 bits (when using an external microphone dynamic range 18 bits)
Quality, format and data density
Without compression (linear), sampling frequency 16 kHz, 256 kbit / s k = 16
Without compression (linear), sampling frequency 8 kHz, 128 kbit / s k = 8
Without compression (linear), sampling frequency of 4 kHz, 64 kbit / s k = 4
logarithmic compression, sampling frequency 16kHz, 128 kbit / s k = 8
logarithmic compression, sampling frequency 8 kHz, 64 kbit / s k = 4
logarithmic compression, the sampling frequency 4kHz, 32 kbit / s k = 2
Modified 4-bit ADPCM, 8 kHz sampling rate, 32 kbit / s k = 2
Modified 2-bit ADPCM, 8 kHz sampling rate, 16 kbit / s k = 1
Modified 4-bit ADPCM, sample rate 4kHz, 16 kbit / s k = 1
modified 2-bit ADPCM, sample rate 4kHz, 8 kbit / s k = 0,5
k - coefficient which shows how many times will decrease the maximum recording time when this recording format.
The rate of exchange with a PC via USB-interface
in standby mode (with the included indicator)
in standby mode (with the light is off)
record mode (depending on the profile record)
VAS mode and the signal below the threshold
The presence of VAS with configurable parameters
Antialiasing program median filter
Entry in the linear and annular modes
8 user settings for the recording settings (profiles)
Timer for the recording at a specified time
*Minimum System Requirements: Windows 98/2000/XP/32 bit operating system Windows Vista; Pentium II 333 MHz; 32 MB of RAM.
