10MHZ function generator with waveform display EM1656
10MHz Function Generator with Waveform Display

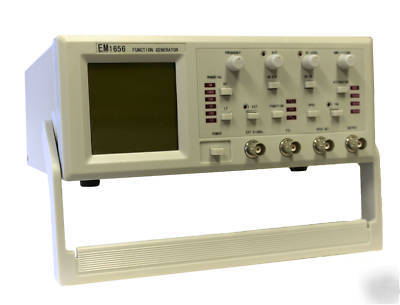

The EM1656 function generator can output many kinds of waveforms such as sine, square, triangle, pulse, ramp, TTL, etc. Its signal frequency range is from 1Hz to 10MHz. The DC level and duty cycle of output signal is adjustable. It provides frequency sweep function, and displays the output frequency, amplitude and waveform with a large screen LCD. It can also be used as a 10MHz frequency counter and a simple oscilloscope.
Sine, Square, Triangle, Pulse, Ramp, Single Pulse, TTL
5mVp-p (Min) to 20Vp-p (Max) continuously variable (open circuit)
5% (from 20Hz to 200kHz)
-10V to +10V continuously variable (open circuit) with zero Offset SW
10% to 90% continuously variable, with 50%-50% calibrated SW
2% from20Hz to 20kHz (sine wave)
3Vp-p (open circuit) Tr 25ns, for 20 TTL load
Linear sweep freq. in 1:50, TS: 0.5 or 5s
240mm (W) x 90mm (H) x 280mm (D)
