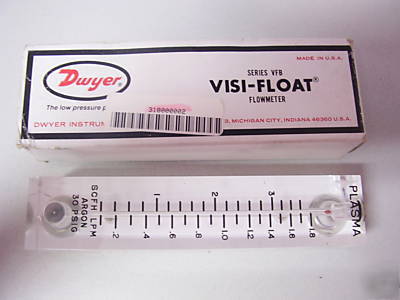

New dwyer 55-192238-00 series vfb visi-float flowmeter
DWYER VISI-FLOAT FLOWMETER BODIES ARE CUT AND PRECISION MACHINED FROM SOLID, CLEAR ACRYLIC PLASTIC BLOCKS. THIS CONSTRUCTION NOT ONLY PRODUCES A HANDSOME FINISHED PRODUCT, BUT PERMITS COMPLETE VISUAL INSPECTION. AS A RESULT, THE FLOWMETERS ARE ESPECIALLY POPULAR FOR MEDICAL AND LABORATORY EQUIPMENT APPLICATIONS.
SERVICE: COMPATIBLE GASES AND LIQUIDS
TEMPERATURE AND PRESSURE LIMITS:
WITHOUT VALVE: 100 psig (6.9 bar) @ 150 F (65 C); 150 psig (10 bar) @ 100 F (38 C).
WITH VALVE: 100 psig (6.9 bar) @ 120 F (48 C).
ACCURACY: VFA = 5% OF FULL SCALE; VFB = 3% OF FULL SCALE.
PROCESS CONNECTION: 1/8" FEMAL NPT. VFB RANGES 85 & 86 HAVE 1/4" NPT BACK CONNECTIONS OR 3/8" NPT END CONNECTIONS.
SCALE LENGTH: VFB 4" TYPICAL LENGTH
MOUNTING ORIENTATION: MOUNT IN VERTICAL POSITION.
YOU'RE GETTING A GREAT PRICE! ESTIMATED RETAIL PRICE: $39.50
