Paxar monarch 9403 thermal printer, labels & ink ribbon

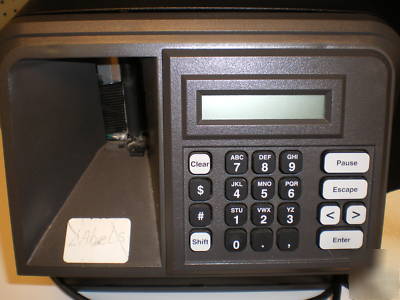

This listing is for a Paxar Monarch 9403 Tabletop Thermal Transfer Printer that you can use stand alone or connect to a computer.
Please note that this listing includes 18 ink ribbons and 75,000 labels.
Printhead: 2.2" (56mm/448 dots)
Display: 2 Line LCD, 16 Char. Per line
PC/Host Interface: Asynchronous RS-232C
XON/XOFF, CTS or DTR flow control
1200, 2400, 4800, 9600, 19200 Baud
Buffers Available (256K total): Transmit, Receive,
Formats, Images, Internal, and Downloadable Fonts
(All buffers except Internal are user definable.)
Fonts Available: Standard, Reduced, Bold, OCRAlike,
CG Triumvirate, CG Triumvirate Bold
Font Magnification: 1x to 7x for bitmapped fonts
Print Ratio: 30% black maximum per square inch
Languages: English, French, German, Spanish
75,000 labels (supply) and 18 ink ribbons
Supply Sizes: Widths - .75" to 2.2" (19mm to 56 mm)
Lengths -.75" to 6" (19mm to 152 mm)
Supply Thickness: 9 to 12 mils
Ribbon Widths: 1.26" (32mm), 1.56 (40mm), 2.12" (54 mm), 2.25" (57mm)
The width of the ribbon must be greater than the supply width.
Since some supplies are moreabrasive to printheads than others, using a ribbon wider than your supply helps
protect the printhead.Only Monarch ribbons are recommended.
Maximum Print Area for Maximum Supply Size: 2" x 6" (51 mm x 152 mm)
Power: U.S. 115 V/60 Hx., 80 Watts nominal ~ International 220 V/50 Hz
Printing Rate: 2.0" (51 mm) per second
Temperature: Operating Thermal Transfer: 40 F to 95 F (4 C to 35 C)
Operating Thermal Direct: 40 F to 110 F (4 C to 43 C)
Storage: 15 to 120 F (-10 to 49 C)
Humidity: 5% - 90% non-condensing
Electrostatic Discharge and Air Quality:
Some problems with electronic equipment may occur in
environments prone to static discharge or extreme dust
conditions. Paxar suggests that you take precautions to
minimize these problems. Contact your Paxar representative
