New fluke 1587 insulation multimeter "brand in box"

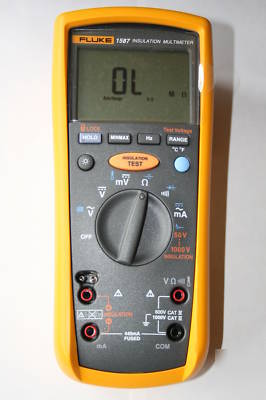

Fluke 1587 Insulation Multimeter
Hybrid Insulation Tester and Multimeter
The Fluke 1587 Insulation Multimeter combine a digital insulation tester with a full-featured, true RMS digital multimeter in a single, compact, handheld unit, which provides maximum versatility for both troubleshooting and preventative maintenance.
YOU CAN WATCH A SHOOT VIDEO AT http://us.fluke.com/VirtualDemos/1587Demo.asp
Insulation test voltages 50V, 100V, 250V, 500V, 1000V
Insulation test voltages 500V, 1000V
Insulation test: 0.01 M to 2.0 G
Insulation test: 0.1 M to 600 M
Auto discharge of capacitive voltage
Insulation test smoothing reading
Low pass filter (for work on VSD's)

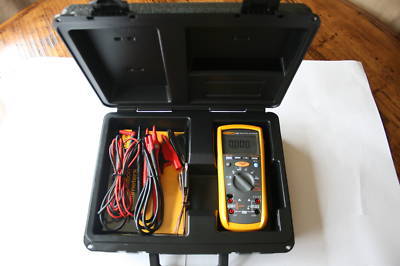

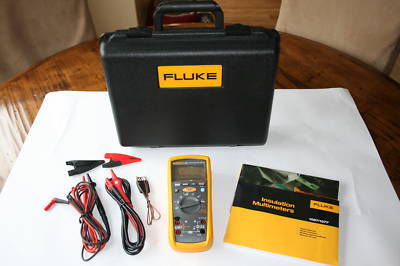

Remote probe, test leads, alligator clips
Auto power off to save battery power
Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
CAT III 100V, CAT IV 600V measurement category
Accepts optional Fluke TPAKTM magnetic hanging system to free your hands for other work
*with low pass filter; 3db @ 800 Hz
Temperature Measurement (1587 only)
Maximum Resistance per Test Voltage:
Maximum Resolution per Test Voltage:
1587: (1.5 % + 5) to 600 M , (10 % + 3) above 600 M
Humidity (Without Condensation)
Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement CAT III 1000 V and CAT IV 600 V
2000 m CAT III 1000 V, CAT IV 600 V; 3000 m CAT II 1000 V, CAT III 600 V
203 x 100 x 50 mm (with holster)
Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 M with a duty cycle of 5 seconds on and 25 seconds off.
