Electromode EUH05K 5KW/480 volt/3 phase electric unit

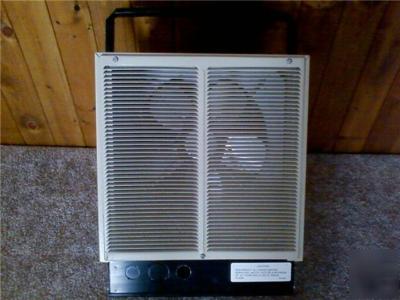

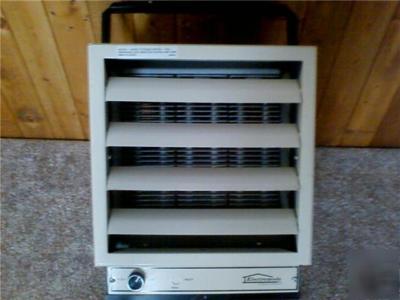

Electromode EUH05K 5KW/480 Volt/3 Phase Electric Unit Heater
built-in adjustable thermostat on models up to and including 12kw
ceiling hanger bracket included, optional wall bracket available
five-way adjustable louvers may be positioned to direct warm air
EUH models up to and including 12kw are UL and CSA approved for vertical and horizontal mounting
Finish: Hybrid polyester epoxy powder coat paint finish.
Construction: The cabinet is constructed of 18 gauge die formed steel. The units have individual adjustable 20 gauge convex profile air redirecting louvers. The louvers are friction fastened to a single piece 20 gauge frame to prevent movement, once adjusted to thedesired position.
Heating Element: The heating element has a metal tubular sheath fused with spiral steel fins. The heating element contains a high quality nickel-chromium wire, encased in solidly packed magnesium oxide insulation.
Controls: A jumper is provided to disable built-in thermostats when remote thermostats are required. Summer fan control and low voltage control options are field installed.
Fan & Motor: The fan size and pitch is matched to the power and speed of the unit, to optimize CFM, air throw, temperature rise, and quietness. The motor is heavy duty, continuous operation, totally enclosed, thermally protected with permanently lubricated ball bearings.
Good condition - removed from a working environment -
