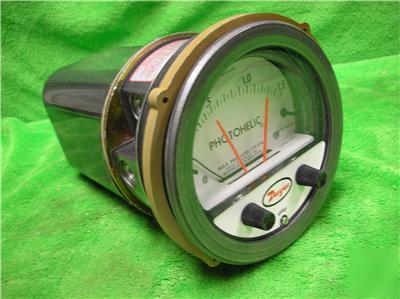

Dwyer phothelic pressure switch gage series 3000 gauge
DWYER PHOTHELIC PRESSURE SWITCH GAGE SERIES 3000 NOS
SERIES 3000 PHOTOHELIC PRESSURE SWITCH/GAGE
Pressure Limits: -20" Hg. to 25 psig (-0.677 to 1.72 bar). MP option; 35 psig (2.41 bar), HP option; 80 psig (5.52 bar). 36003S 36010S; 150 psig (10.34 bar). 36020S and higher; 1.2 x full scale pressure.
Temperature Limits: 20 to 120 F. (-6.67 to 48.9 C) Low temperature option available.
Process Connections: 1/8" female NPT.
Size: 4" (101.6 mm) dial face, 5" (127 mm) O.D. x 8-1/4" (209.55 mm).
Switch Type: Each setpoint has 2 Form C relays (DPDT).
Repeatability: 1% of full scale.
Electrical Rating: 10A @ 28 VDC, 10A @ 120, 240 VAC;
Electrical Connections: Screw terminals. Use 167 F (75 C) copper conductors only.
Power Requirements: 120 VAC, 50/60 Hz; 240 VAC & 24 VAC Power optional.
This listing is for new old stock in its original Dwyer box and packaging with instruction manual. This is new and has never been used. See pictures for more details and please make sure that this is the part you need before purchasing, as it is a non-returnable item. Thank you.
