Ultrasonic 4800 apc, odell cleaning & drying chamber

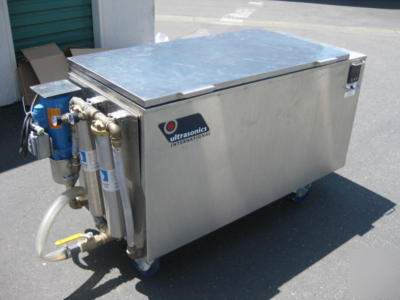

2005 4800 APC Ultrasonic Cleaner
Double walled insulated wash tank and hinged lid
Heavy Duty 4' soft ride locking castors
Stainless steel power station for ultrasonic generators- one button operation
On board heat w/ digital thermostat control
Filtration System: High volume 5 Micron replaceable cartridge/ stainless steel housings
Wave Sweep: Eliminates standing waves and promotes uniform cleaning
Power Intensity Control: adjustable power output for delicate cleaning
Interior tank: 48 Length, 24 Width, 28 Deep
Ultrasonic Power: 7200 Waatts Peak (3600 RMS) or 9000 Watts Peak (4500 RMS)

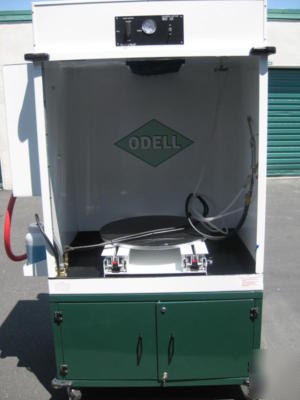

ODELL Mobile Electronics Cleaning Station model #1735
The largest, unobstructed mobile cleaning chamber in the industry - opening measures 37" wide x 33.5" high, with a total chamber area of 32.6 cu.ft. (easily holds 35" T.V.)
Slide out turntable, with adjustable stops, helps reduce back strain from repetitive loading and unloading of equipment into chamber. (Fully extended turntable has load capacity of 200 pounds as a free standing unit or 600 pounds if unit is securely anchored.)
Removable, side-mounted water modifier/conditioner, with standard garden hose connection, processes water through a specially designed 5 micron sediment filter, hydro-magnetic softener and de-ionization system, and finally an instantaneous heater to provide technician a constant source of pure, softened, modified de-ionized hot water.
Conditioned water and cleaning solutions are applied using a hand-held, medium-pressure cleaning gun with a narrow,10"long tube/nozzle to access hard to reach places.
Built-in air gun allows the technician a convenient means to remove surface contaminants before cleaning, as well as removing excess moisture from cleaned equipment prior to drying.
Recessed lighting provides safe, well-lit working area.
Exhaust blower ventilation system with replaceable filter, reduces vapor mist in cleaning chamber, while lowering emissions in exhausted air.
Electronic switching valves enable technician to instantly change modes of operation from cleaning to rinsing to filling solution tank.
Cabinet construction is rugged powder-coated steel.
Bottom of cleaning chamber and top of turntable are coated with a mold/mildew resistant, rustproof material.
Coating of turntable helps to minimize scratching equipment during the cleaning process.
Conveniently located drain (with removable, powder-coated strainer) is designed to connect to standard garden hose.
Four heavy-duty casters (two being lockable) provide mobility for staging equipment where needed.
Cleaning system is designed to fit through a standard 36" doorway for on or off site cleaning.
Cleaning chamber is mounted on a powder-coated steel, key lockable storage cabinet ideal for securing supplies and tools.
Overall dimensions approximately: 42.5" wide x 35" deep x 80" high
Weight is approximately: 562 pounds
Power requirements: Two separate 20A, 115V, 60Hz. GFI circuits
Air requirements: Dry compressed Air approximately 10cfm @ 50psi
Water requirements: Standard cold tap water with 3/4" hose connection
Drain requirements: 3/4" garden hose, gravity fed.

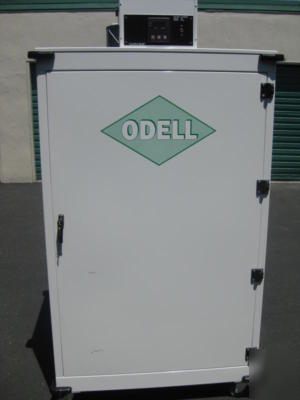

Odell Mobile Electronics Drying Chamber #65
* Largest unobstructed mobile drying chamber in the industry.
* Drying chamber opening is 36" wide x 55.5" high (easily accepts a 35" T.V.). Total chamber area: 42 cu.ft.
* Fully adjustable digital temperature controller accurately maintains optimum drying temperature.
* Safety shut-off switch prevents dryer overheating.
* Updraft design features high circulating, low temperature air for optimum drying speed and efficiency.
* Three adjustable chrome plated steel shelves.
* Key lockable door secures contents during drying process.
* Cabinet construction is rugged powder-coated steel.
* Four heavy-duty casters (two being lockable) provide mobility for staging equipment where needed.
* Drying chamber is designed to fit through standard 36" doorways for use on or off site.
* Over-all Dimensions approximately: 42.5" wide x 35" deep x 80" high.
* Weight is approximately: 382 pounds.
* Power requirements: one 20amp, 115v, 60Hz, GFI circuit.
Please include a phone number with offers
Feel free to contact Bob with any questions, or to discuss offers
