Nelco N200ML010 separtely excited dc sepex motor

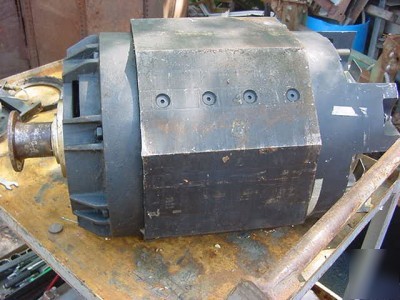

Nelco N200ML010 Separately Excited DC Sepex Motor
Nelco N200ML010 Separately Excited DC Sepex Motor. Used in testing for 1989 GMC Conceptor Electric G-Van. Never installed in a Van. Stock CH-1.
Configuration - Separately Excited
Nominal Field Current - 15 amps ( @ approx 65V at 20 degree C )
Armature Current - 250 amps ( 15 minutes rating @ 2500 rpm )
Power Rating - 42 kW ( 15 minutes rating @ 2500 rpm )
Peak Power - 42 kW ( @ 4000 rpm )
Max Torque - 330 Nm ( 3 minute rating )
Maximum Dimensions 19.5 " x 23.4" x 13.2" x 13.8"
Manufactured by Nelco Ltd, England
A separately excited DC motor for high performance electric vehicles. Designed for use with the MK 5 controller this motor is built to give smooth trouble-free service under arduous stop/start city traffic conditions. Compact and lightweight for a motor of this power, it has been planned for volume production and minimum cost.
