Kling 105 ton mechanical iron worker, punch angle shear

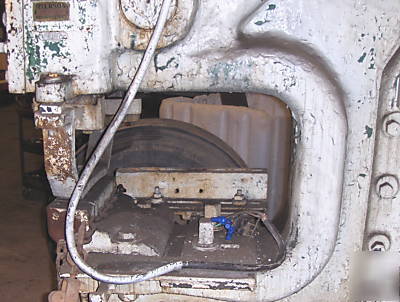

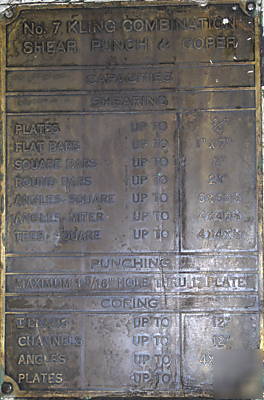

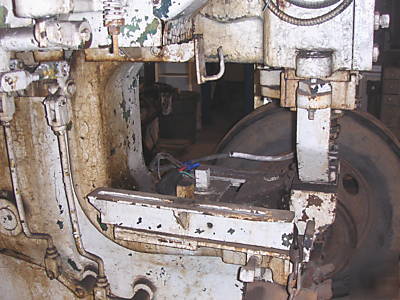

Punch has a 24" deep throat with a rated capacity of 1 5/16" thru 1" plate. works out to be 105 ton.

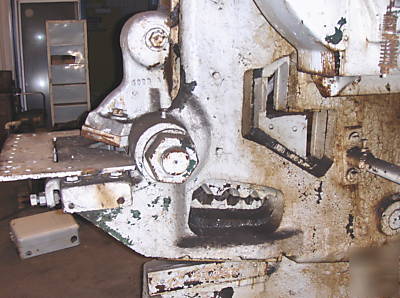

16" flat shear rated at 3/4" by 16" and 1" by 7"

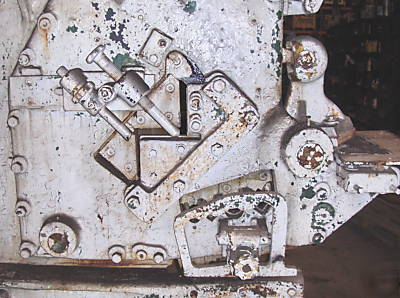

6" by 6" by 1/2" angle shear at 90 degrees and 4" by 4" at 45 degrees
5 1/2" by 5 1/2" coper rated at 1/2"
Upto 2" square bar and 2 1/4" rounds
Has belt drive 10 hp 3 phase motor, 220-440 volt

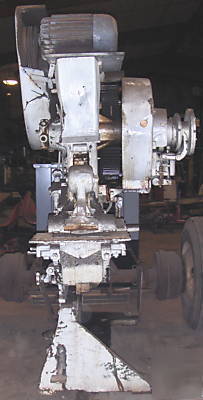

45" wide, 8' long and 100" tall
Guessing the weight at 12,000 pounds

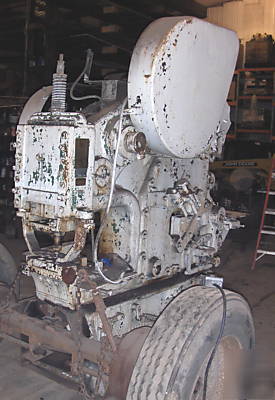

You may have the axle so that you can move around with a 5000 pound forklift

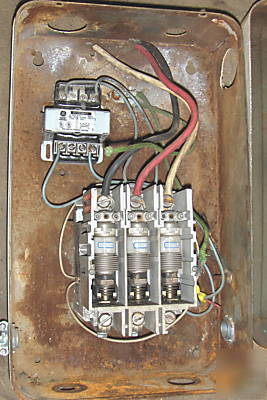

Has a motor contactor and box included

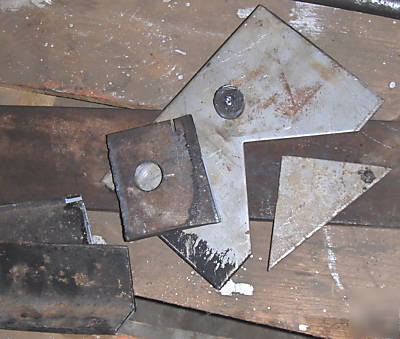

Picture of punched and sheared steel was done on this machine.
Can be seen under power at 54837 zip code.
