Chevalier 6 x 18 3 axis auto. grinder / fsg-618AD, ra

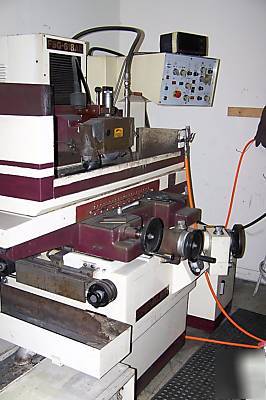

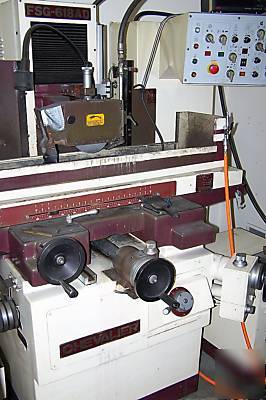

CHEVALIER 618 3 AXIS AUTOMATIC GRINDER
HYDRAULIC OPERATED AUTOMATIC GRINDER

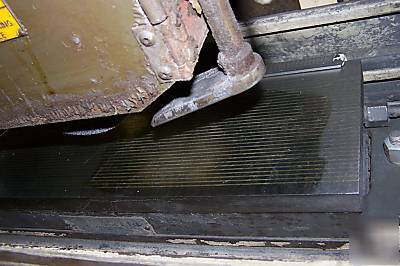

FINE POLE MAGNETIC CHUCK / RECTIFIER
MAX. GRINDING LENGTH / LONGITUDINAL / 18"
MAX. DIST FROM TABLE TO SPINDLE CENTERLINE / 18"
LONGITUDINAL TRAVELS HYDRAULIC OPERATION -20" /// MANUAL OPERATION -22"
TABLE SPEED / INFINITELY VAR. - 16 - 98 FPM
CROSS TRAVERSE TRAVEL ;AUTO. TRAVERSE APPROX /12 / FPM
AUTO. TRAVERS INCREMENT .02" - .05"
MAX. MANUAL TRAVERSE TRAVEL - 7 1/2"
MAX. AUTO TRAVERS TRAVEL - 6 5/8"
HANDWHEEL PER GRADUATION - .0025"
MICRO FEED //// PER REV ( .005 ) PER GRAD. ( .00005 )
WHEELHEAD VERTICAL INFEED; AUTO. INFEED .00005" - .002
SPINDLE SPEED - 3,450 RPM/60HZ
COST INCLUDES RIGGING OUT OF BUILDING AND LOADING ONTO YOUR CARRIER BY PROFESSIONAL RIGGERS / BONDED & INSURED
CHECKED TO GRIND .00005 TOLERANCE OVER ENTIRE CHUCK
PLEASE CALL WITH QUESTIONS (***)-333-1377 OR EMAIL
