4PCS vishay TFDU6101E infra red transceiver smt pic avr

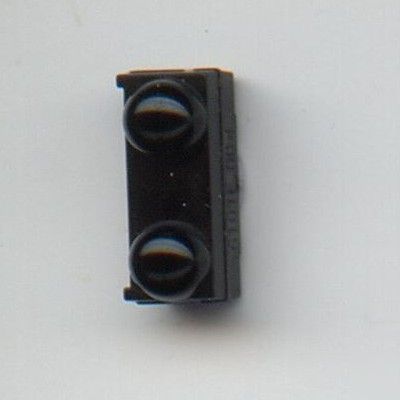

4pcs Vishay TFDU6101E Infra Red Transceiver
Compliant to the IrDA physical layer standard
HP SIR), Sharp ASK) and TV Remote Control
For 3.0 V and 5.0 V Applications
Operates from 2.6 V to 5.5 V within specification,
Low Power Consumption (3 mA Supply Current)
Power Shutdown Mode (1 A Shutdown Current)
Four Surface Mount Package Options
Universal (9.7 4.7 4.0 mm)
Side View (13.0 5.95 5.3 mm)
Top View (13.0 7.6 5.95 mm)
Dracula (11.2 5.6 2.2 mm)
Push-Pull-Receiver Output, grounded in
Directly Interfaces with Various Super I/O and
Built In EMI Protection No External Shielding
Few External Components Required
Backward Pin to Pin Compatible to all Vishay
Telefunken SIR and FIR Infrared Transceivers
Split power supply, transmitter and receiver can be
operated from two power supplies
Universal (9.7 4.7 4.0 mm)
