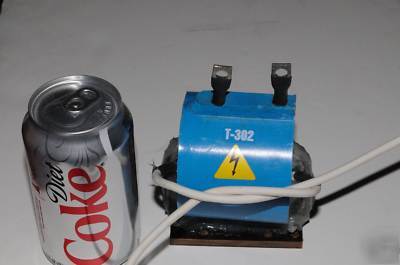

Transformer / series injection inductor rowland T302
Trigger transformer for series injection of a flashlamp circuit Specification as follows.
* Peak Output Voltage (kV) 30
* MAX Input DC Source (Volts) 1500
* Max Primary Trigger input pulse energy 4 J/P
* Turns Ratio Secondary to Primary 30:1
* Hold-off Voltage Secondary to Primary (kVdc) 30
* Saturated Inductance H sat 240
