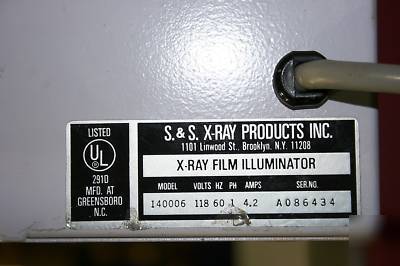

S&s x-ray 6 panel film illuminator #140006
Designed for optimum viewing at an economy price,
the Circulite illuminator is housed in an attractive, stylish
case constructed of 18 gauge cold rolled steel. Multiple
bank units are constructed of a single housing, not a series
of single units bolted together. A gravity film grip, extending
the full width of the illuminator, holds the top of the
film firmly in place, while a film retainer ledge supports

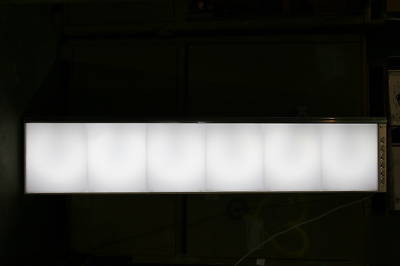

film at the bottom of the viewing area. Each viewing area
is controlled by a rocker switch which is mounted in the
stainless steel trim at the right front of the illuminator.

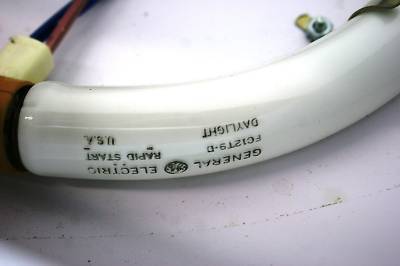

Each 14 x17 viewing area is illuminated by one 32 watt
daylight circline fluorescent lamp. Dividers are installed to
prevent light spillover. When specified (at time of order)
illuminators can be supplied without dividers for
