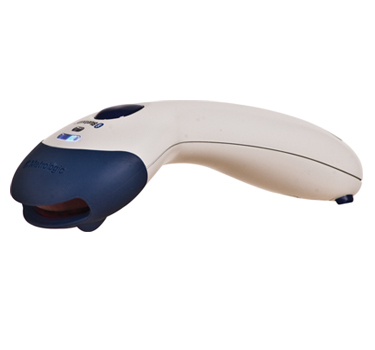

Metrologic mk 9535 voyagerbt barcode scanner kits
Wireless Single-Line Laser Scanner
Honeywell s MS9535 VoyagerBT wireless, single-line laser scanner frees retailers and healthcare professionals to aggressively scan all standard 1D bar codes anytime, anywhere.
Voyager scanners are the industry benchmark for value and performance.
To conserve valuable counter space, the scanner cradle mounts to any wall. In addition to automatic infrared activation, the VoyagerBT comes with Honeywell s patented CodeGate and RangeGate technology.
CodeGate technology easily completes data transmission with the push of a single button.
RangeGate enables VoyagerBT to scan 250 bar codes when out of range of a host system. VoyagerBT then automatically downloads them to the host when the connection is re-established.
Bluetooth Wireless Technology: Facilitates scanning all standard 1D bar codes anytime, anywhere
Multiple Scan Indicators: Provides audible and visual confirmation of each scan
Wall-Mountable Cradle: Conserves valuable counter space
CodeGate: Zero in on desired code and complete data transmission with the push of a single button ideal for menu scanning applications
RangeGate: Scans 8KB of bar codes while out of range and then communicates with host once connectivity is re-establishedRoHS2002/95/E
0 mm - 203 mm (0 - 8) for 0.33 mm (13 mil) bar codes
Width of Field: 64 mm (2.5) @ face; 249 mm (9.8) @ 203 mm (8)
Scan Speed: 72 2 scan lines per second
Minimum Bar Width: 0.127 mm (5 mil)
System Interfaces: PC Keyboard Wedge, RS232, OCIA, Light Pen Emulation, IBM 468X/469X, Stand Alone Keyboard, USB
Light Source: Visible Laser Diode 650 nm 10 nm
